Main Bearing Cap Specification

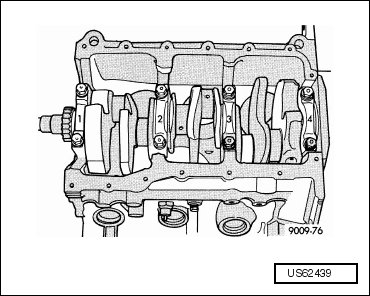

Crankshaft Main Bearing Cap Bolts






Tighten number 1, 3 and 4 main cap bolts to 41 Nm (30 ft lbs) + an additional 1/4 turn.







Crankshaft Main Bearing Cap Cross Bolts

Tighten the bolts to 61 Nm (45 ft lbs).







Size Codes

Bearing shells are available in standard sizes and the following undersizes: 0.025 mm (0.001 in) and 0.254 mm (0.010 in).
