Power Steering Fluid: Service and Repair

Service Procedures

Power Steering Fluid Level Checking

Standard Procedure

CAUTION!
Fluid level should be checked with the engine off to prevent personal injury from moving parts and to assure an accurate fluid level reading.

• Although not required at specific intervals, the fluid level may be checked periodically. Check the fluid level anytime there is a system noise or fluid leak suspected.

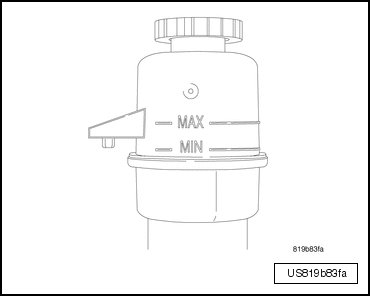

Power Steering Reservoir





The power steering fluid level can be viewed through the side of the power steering fluid reservoir. Compare the fluid level to the markings on the side of the reservoir. When the fluid is at normal ambient temperature, approximately 70° F. to 80° F (21° C to 27° C.), the fluid level should read between the Max. And Min. markings. When the fluid is hot, fluid level is allowed to read up to the Max. line.
