Fog/Driving Lamp: Adjustments

Service Procedures

Fog Lamp Alignment

Fog Lamp Unit Alignment

Prepare an alignment screen. A properly aligned fog lamp will project a pattern on the alignment screen 100 mm (4 in.) below the fog lamp center line and straight ahead. To improve visual interpretation of the fog lamp pattern on the alignment screen, the headlamps should be in the "off" position.

The fog lamps are adjusted by a adjustment screw at the top of the lamp.

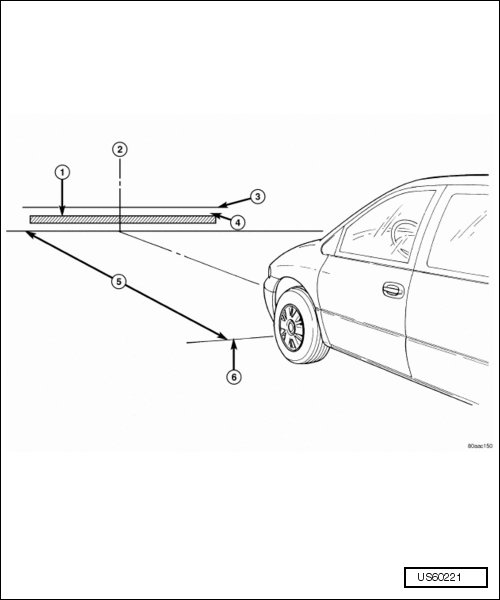

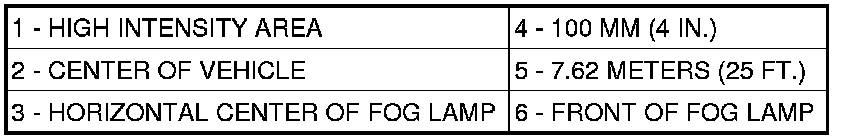

Fog lamp unit alignment
