Non-Adjustable Pedals

Non-Adjustable Pedals

Removal

- Move driver seat to full rearward position.

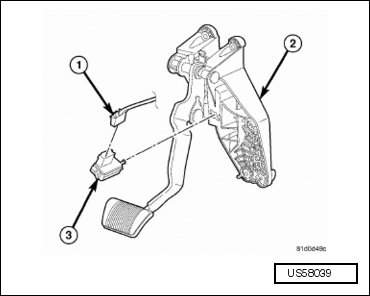

- Disconnect the wiring connector (1) at the stop lamp switch (3).






• Through MY 2009, do not reuse switch, install new switch upon installation.

• From MY 2010, the switch can be reused.

- Rotate the stop lamp switch clockwise until the retaining tabs line up with the slot in the bracket (2), then remove the switch (3).

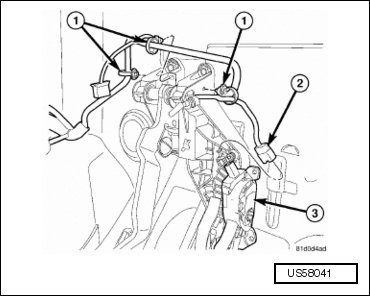

- Disconnect wiring connector (2) at electronic throttle control (3).






- Remove wiring harness routing straps (1) from brake pedal bracket.

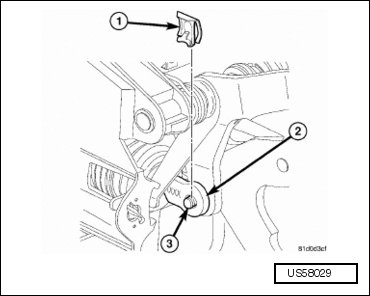

- Remove booster push rod (2) from pin (3) on brake pedal.






- Position small screwdriver between center tang on power brake booster brake pedal pin retaining clip (1).

• Discard retaining clip. It is not to be reused. Install new retaining clip when assembling.

- Rotate screwdriver enough to allow retaining clip center tang to pass over end of brake pedal pin, then slide retaining clip off brake pedal pin.

- Slide booster push rod (2) off brake pedal pin (3).

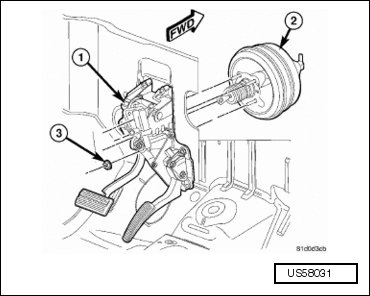

- Remove four power brake booster mounting nuts (3).

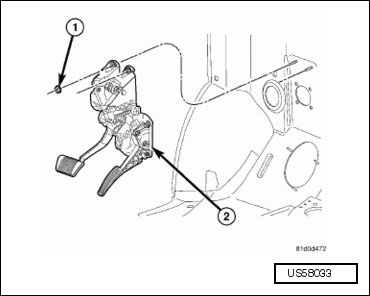

- Remove two nuts (1) fastening pedals assembly (2) to dash panel.






- Remove adjustable pedals assembly (2).

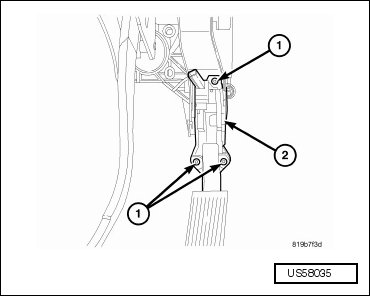

- If required, remove three electronic throttle control mounting screws (1). Remove electronic throttle control (2).






Installation

- If required, install electronic throttle control (2) on pedals assembly. Install three mounting screws (1).






- Install adjustable pedals assembly (2) under instrument panel and slide onto power brake booster and dash-mounted studs.






- Install four power brake booster mounting nuts (2). Tighten nuts to 28 Nm (21 ft. lbs.).






- Install nuts (1) on dash mounted studs. Tighten nuts to 28 Nm (21 ft. lbs.).






- Slide booster push rod (2) onto brake pedal pin (3). Install new retaining clip (1) securing push rod to brake pedal.






- Route wiring harness over pedals assembly and install routing straps (1).






- Connect wiring connector (2) at electronic throttle control (3).

• Through MY 2009, do not reuse switch, install new switch upon installation.

• From MY 2010, the switch can be reused.

- Install and adjust stop lamp switch (3) in pedal assembly.






- Test operation of adjustable pedals.

- Road test vehicle testing operation of brakes and accelerator.
