Headliner: Service and Repair

Headliner

Removing






- Disconnect the negative battery cable.

- Remove the left and right A-pillar trim panels. Refer to => [ A-Pillar Trim Panel, Upper ] A-Pillar Trim Panel, Upper.

- Remove the left and right B-pillar upper trim panels. Refer to => [ B-Pillar Trim Panel, Upper ] B-Pillar Trim Panel, Upper.

- Remove the left and right C-pillar upper trim panels. Refer to => [ C-Pillar Trim Panel, Upper ] C-Pillar Trim Panel, Upper.

- Remove the left and right D-pillar upper trim panels. Refer to => [ D-Pillar Trim Panel, Upper ] D-Pillar Trim Panel, Upper.

- Remove the front overhead console. Refer to => [ Front Overhead Console ] Front Overhead Console.

- Remove the rear overhead console, refer to the following:

• Short rear, without sunroof. Refer to => [ Short Rear Overhead Console, without Sunroof ] Short Rear Overhead Console, without Sunroof.

• Long rear. Refer to => [ Long Rear Overhead Console ] Long Rear Overhead Console.

• Second row, with sunroof. Refer to => [ Second Row Overhead Console, with Sunroof ] Second Row Overhead Console, with Sunroof.

• Third row, with sunroof. Refer to => [ Third Row Overhead Console, with Sunroof ] Third Row Overhead Console, with Sunroof.

- Remove left and right sun visors. Refer to => [ Sun Visor ] Sun Visor.

- Remove left and right sun visor supports. Refer to => [ Sun Visor Support ] Sun Visor Support.

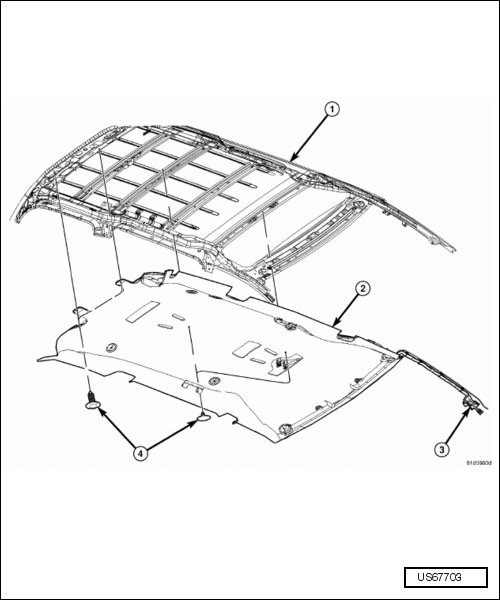

- Disconnect the headliner wiring connector (3) at the A-pillar.

- Remove the coat hook fasteners and remove the coat hooks.

- Remove the push pins (4) holding the headliner (2) in place.

- Remove the headliner out through the rear liftgate opening.

Installing






- Install the headliner through the rear liftgate opening.

- Install the push pins (4) holding the headliner (2) in place.

- Connect the headliner wiring connector (3) at the A-pillar.


Ensure the coat hook locator tab is properly seated in the coat hook mounting bracket. Failure to seat the coat hooks properly will cause the locator tab to break and the coat hooks will not latch in the stowed position.

- Install the coat hooks and coat hook fasteners.

- Install both left and right sun visor supports. Refer to => [ Sun Visor Support ] Sun Visor Support.

- Install both left and right sun visors. Refer to => [ Sun Visor ] Sun Visor.

- Install the rear overhead console, refer to the following:

• Short rear, without sunroof. Refer to => [ Short Rear Overhead Console, without Sunroof ] Short Rear Overhead Console, without Sunroof.

• Long rear. Refer to => [ Long Rear Overhead Console ] Long Rear Overhead Console.

• Second row, with sunroof. Refer to => [ Second Row Overhead Console, with Sunroof ] Second Row Overhead Console, with Sunroof.

• Third row, with sunroof. Refer to => [ Third Row Overhead Console, with Sunroof ] Third Row Overhead Console, with Sunroof.

- Install the front overhead console. Refer to => [ Front Overhead Console ] Front Overhead Console.

- Install the left and right D-pillar upper trim panels. Refer to => [ D-Pillar Trim Panel, Upper ] D-Pillar Trim Panel, Upper.

- Install the left and right C-pillar upper trim panels. Refer to => [ C-Pillar Trim Panel, Upper ] C-Pillar Trim Panel, Upper.

- Install the left and right B-pillar upper trim panels. Refer to => [ B-Pillar Trim Panel, Upper ] B-Pillar Trim Panel, Upper.

- Install the left and right A-pillar trim panel. Refer to => [ A-Pillar Trim Panel, Upper ] A-Pillar Trim Panel, Upper.

- Connect the negative battery cable.
