Ribbed Belt Drive, Assembly Overview

Ribbed Belt Drive, Assembly Overview





1 Vibration damper

• with ribbed belt pulley

• Removing and installing => [ Vibration Damper, Removing and Installing ] Service and Repair

2 O-ring

• Replace

3 Bolt

• Replace

• 150 Nm + 90° (1/4) turn.

• Use counter-holder (T10355) to loosen and tighten

4 Ribbed belt

• Check for wear

• Do not kink

CAUTION!
Risk of destroying due to reversed running direction on a used ribbed belt.

• Before removing ribbed belt, marking running direction with chalk or felt-tip pen for reinstallation later.

• Removing and installing => [ Ribbed Belt, Removing and Installing ] Ribbed Belt, Removing and Installing

• When installing, make sure it is seated correctly on the pulleys

5 Tensioning device for ribbed belt

• To release tension on ribbed belt, swing using open-end wrench.

• secure with mandrel (T10060 A)

• Tensioning device for Ribbed Belt => [ Tensioning device for ribbed belt ]

• Passat, Removing and Installing => [ Ribbed Belt Tensioner, Removing and Installing, Passat and Passat CC ] Service and Repair

• Removing and Installing, Rabbit, Eos and Scirocco.

• Removing and Installing, Tiguan.

6 Bracket for assemblies

• with Oil Pressure Switch (F1), oil filter and oil cooler

• Accessory Assembly Bracket, Removing and Installing => [ Accessory Assembly Bracket, Removing and Installing ] Service and Repair

• Oil cooler, removing and installing => [ Oil Cooler, Removing and Installing ] Service and Repair

7 Bolt

• 10 Nm

8 Alternator

• Removing and installing

9 Bolt

• 23 Nm

10 Bolt

• Tightening order => [ Accessory assembly bracket tightening sequence ]

11 A/C Compressor

• Do not remove or disconnect refrigerant lines

• Removing and installing

12 Bolt

• 25 Nm

13 Alignment bushing

• For air conditioning compressor

Tensioning device for ribbed belt





1. Tensioning device for ribbed belt

2. Support

3. Bracket for assemblies

4. Centering sleeve

5. Bolt

Accessory assembly bracket tightening sequence





- Mount the accessory assembly bracket and then mount the bolts - 4 -.

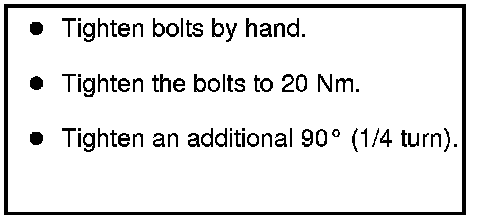

- Tighten bolts in 3 stages in - 1 to 5 - sequence as follows:
