Home
>>
Volkswagen
>>
2009
>>
CC (357) V6-3.6L (BLV)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Seats
>>
Power Seat Switch
>>
Seat Ventilation Switch -E655- / -E723-
Seat Ventilation Switch -E655- / -E723-
Comfort Systems - Connector Views

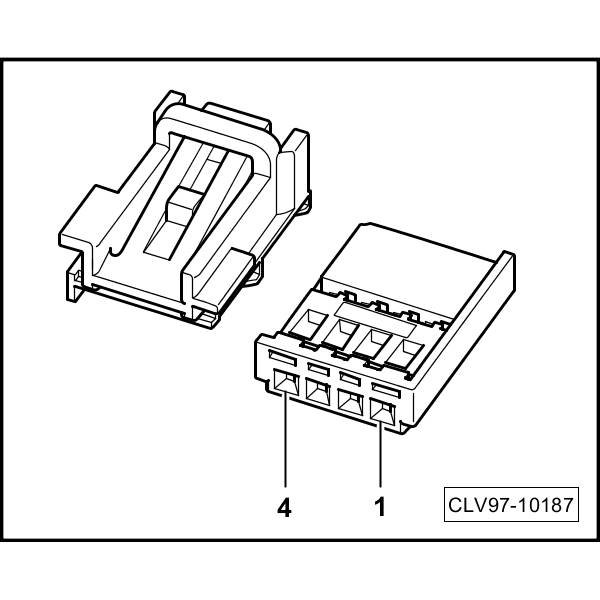

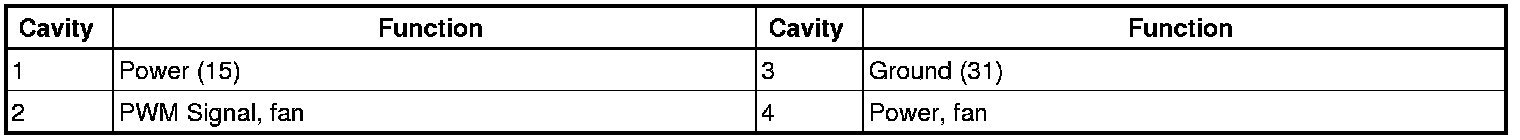

Seat ventilation switch -E655- / -E723-
