Power Door Lock Actuator
>>
Driver Door Lock Unit -VX21-
Driver Door Lock Unit -VX21-
Door Control Units - Connector Views

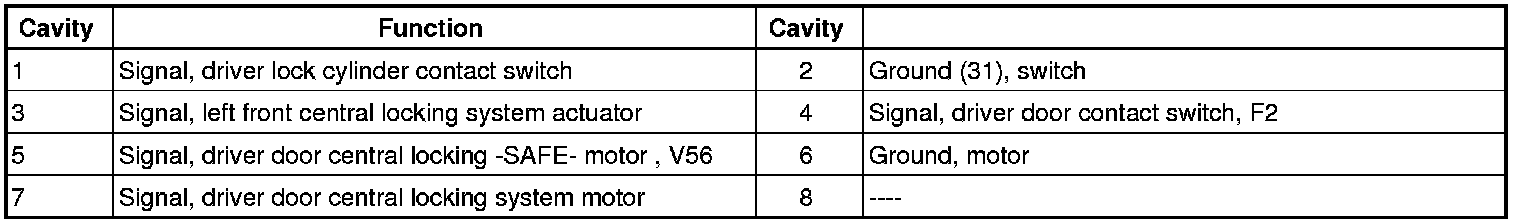

Driver door lock unit -VX21-
