Parking Brake Control Module
Parking Brake Control Module

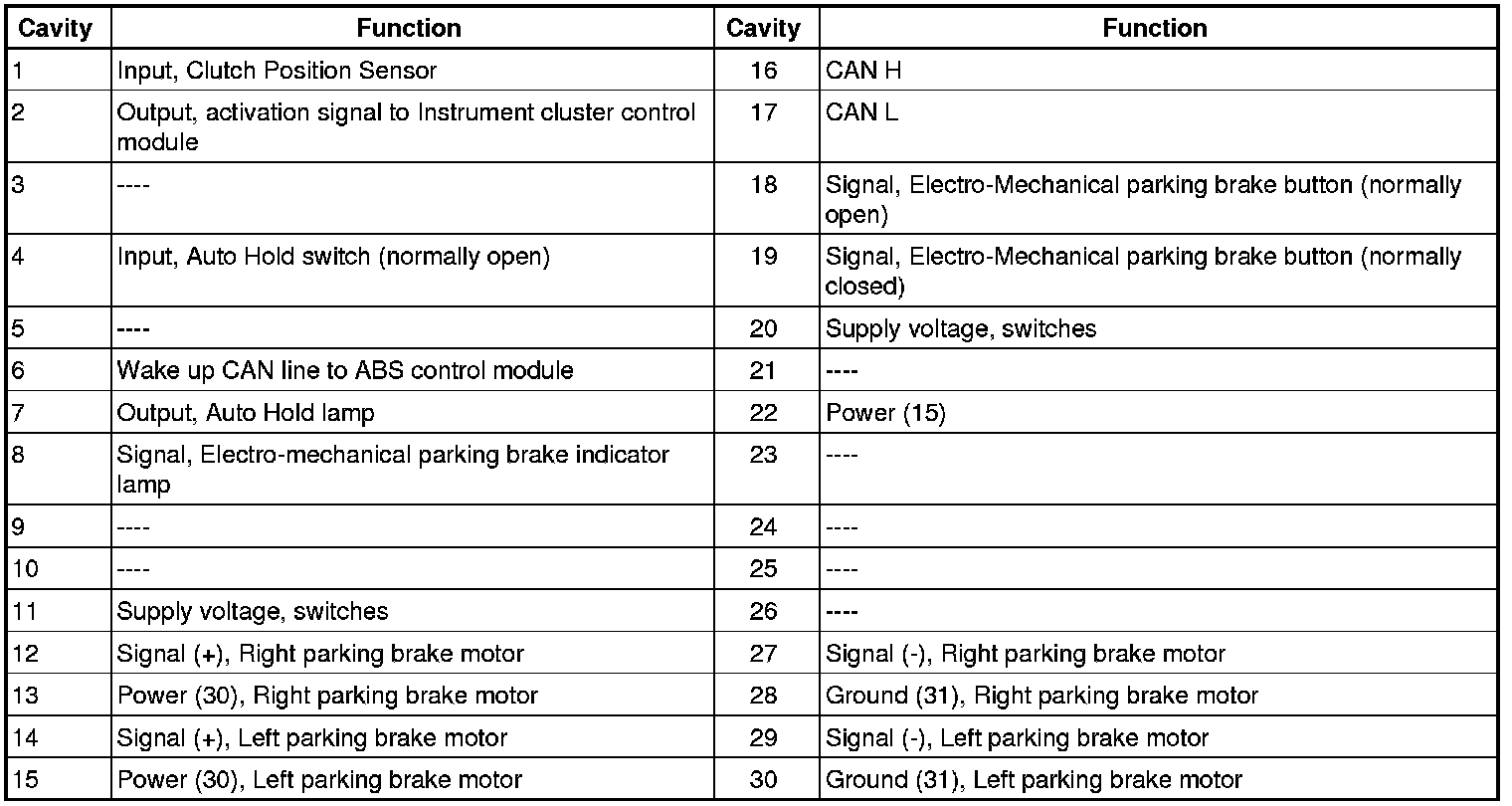

Parking Systems - Connector Views

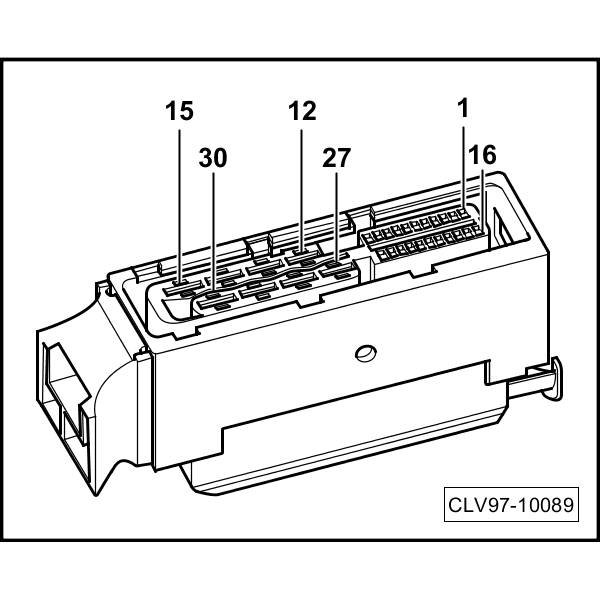

Electromechanical
parking brake control module
-J540-
