Home
>>
Volkswagen
>>
2008
>>
Rabbit (1K1) L5-2.5L (BGP)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Emission Control Systems
>>
Relays and Modules - Emission Control Systems
>>
Air Injection Pump Relay
>>
Locations
>>

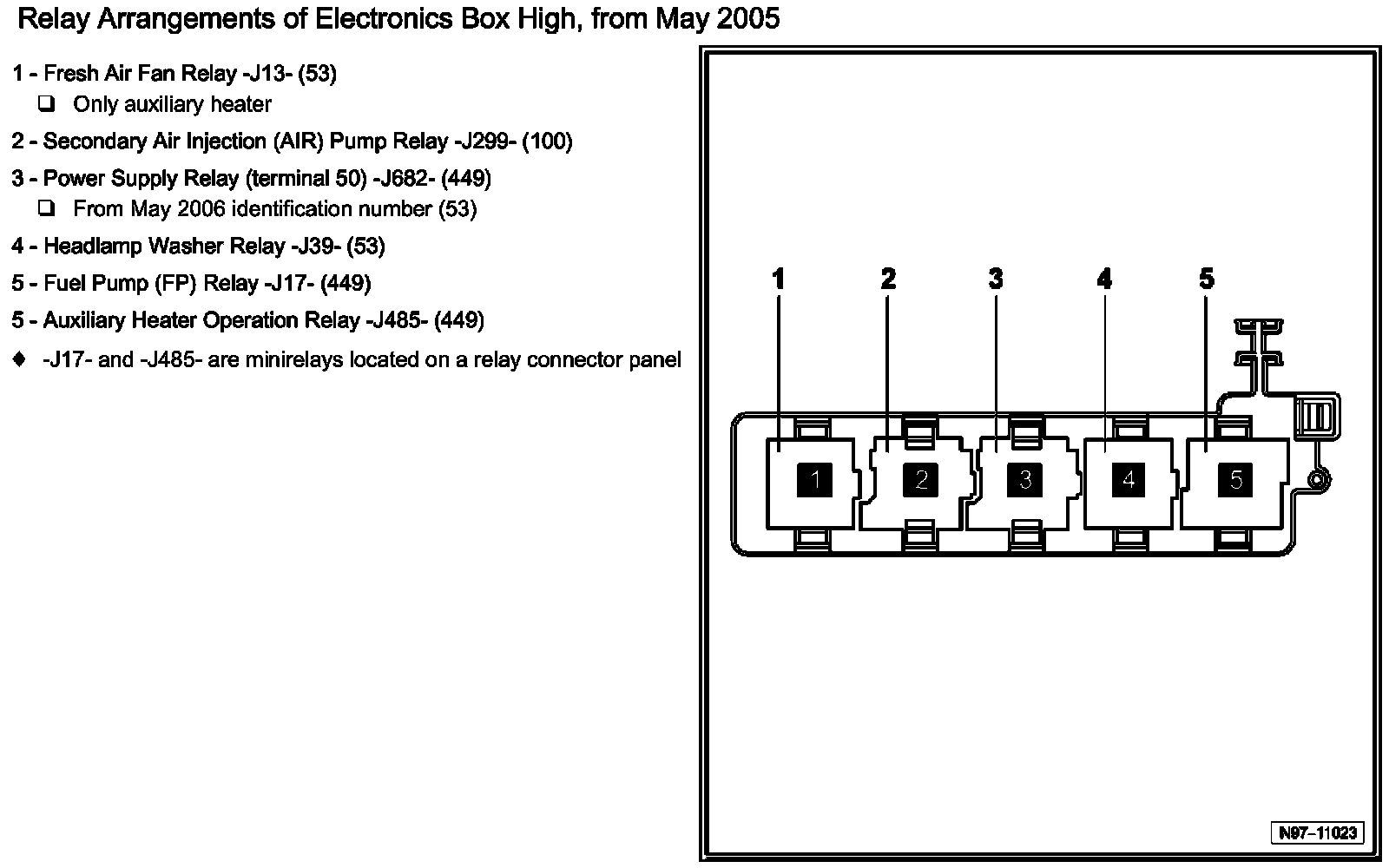

Relay Arrangements of Electronics Box High
Relay Arrangements of Electronics Box High
Relay Arrangements Of Electronics Box High:
