Plenum Chamber Box Connector Station

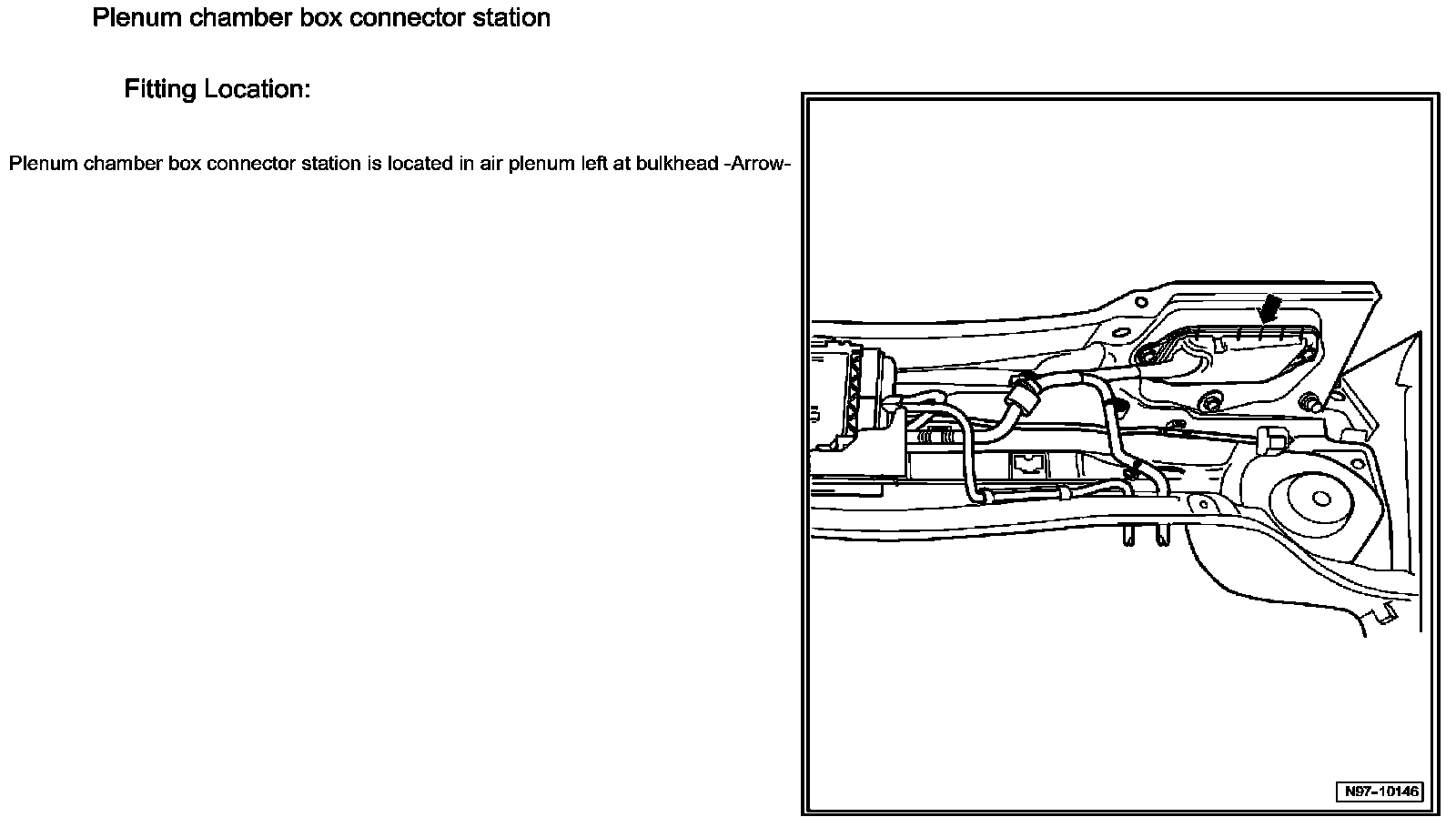

Plenum Chamber Box Connector Station

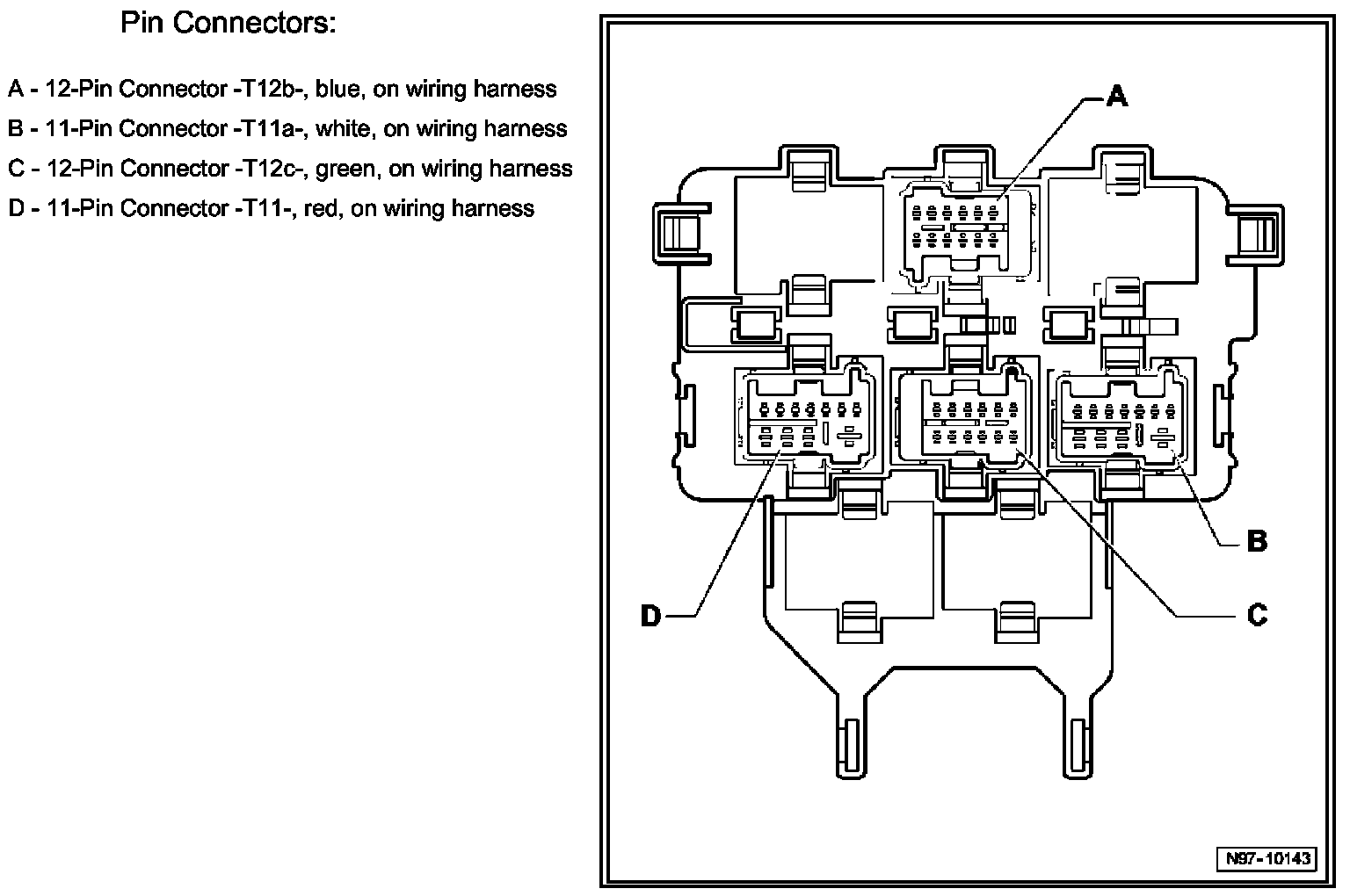

Plenum Chamber Box Connector Station:
Pin Connectors:
