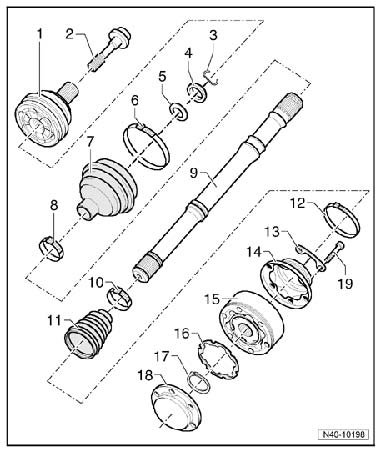

Drive Axle with Constant Velocity Joint VL 107 Assembly Overview

Drive Axle with Constant Velocity Joint VL 107 Assembly Overview





1- Outer constant velocity joint
2- Bolt
^ M16 x 1.5 x 80
^ Hex head bolt = 200 Nm plus an additional 180° turn
^ 12-point bolt = 70 Nm plus an additional 90° turn
^ Always replace after removal
^ Vehicle must not stand on wheels when loosening and tightening
3- Securing ring
^ Always replace after removal
4- Thrust washer
5- Dished washer
6- Clamp
^ Always replace after removal
7- Protective boot
8- Clamp
^ Always replace after removal
9- Drive Shaft
10- Clamp
^ Always replace after removal
11- CV boot
^ Before mounting onto constant velocity joint, coat sealing surface using D 454 300 A2
12- Clamp
^ Always replace after removal
13- Backing plate
^ Always replace after removal
14- Cover
^ Before mounting onto constant velocity joint, coat sealing surface using D 454 300 A2
15- Inner constant velocity joint
16- Gasket
17- Securing ring
18- Cover
^ Always replace after removal
^ Always replace
19- Socket head bolt
^ First pre-tighten to 10 Nm in a diagonal sequence, then tighten to tightening torque in a diagonal sequence
- M8 bolt = 40 Nm
- M10 bolt = 70 Nm
^ Always replace after removal
