Procedures

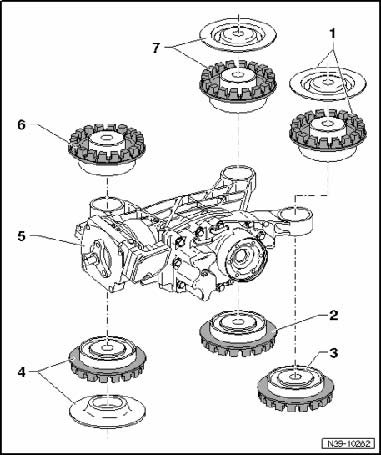

Rubber Bonded Bushing Assembly Overview

Note: Replace the rubber bonded bushings in pairs (upper and lower bushings).





1- "Upper rear" rubber bonded bushing
2- "Lower rear" rubber bonded bushing
3- "Lower rear" rubber bonded bushing
4- "Lower front" rubber bonded bushing
5- Rear final drive
6- "Upper front" rubber bonded bushing
7- "Upper rear" rubber bonded bushing
