ATF Cooler Assembly Overview
6 SPD. A/T 09M FWD/AWD

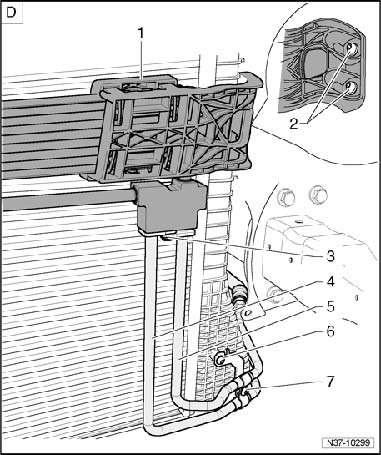

ATF Cooler Assembly Overview
1- Automatic transmission fluid cooler
2- Bolt
^ 5 Nm
3- Bolt
^ 9 Nm
4- ATF line
^ Return line
5- ATF line
^ Supply line
6- Bolt
^ 5 Nm
7- Bolt
^ 9 Nm
6 SPD. A/T 09M FWD/AWD
ATF Cooler Assembly Overview
1- Automatic transmission fluid cooler
2- Bolt
^ 5 Nm
3- Bolt
^ 9 Nm
4- ATF line
^ Return line
5- ATF line
^ Supply line
6- Bolt
^ 5 Nm
7- Bolt
^ 9 Nm
