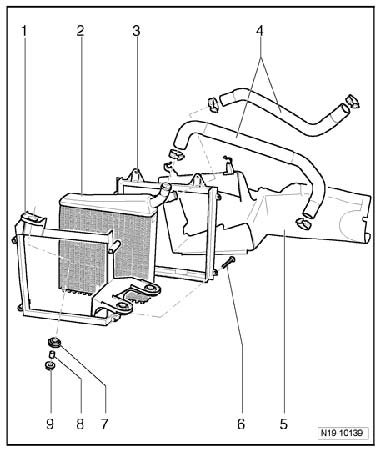

Auxiliary Cooler Assembly Overview

Auxiliary Cooler Assembly Overview

Note:
^ Auxiliary cooler is located behind left wheel housing liner.





1. Front mounting frame
2. Auxiliary cooler
^ For removal, remove lower left wheel housing liner.
3. Rear mounting frame
4. Coolant hose
^ Ensure seated tightly
5. Air shroud
^ Clipped in on rear mounting frame
6. 5 Nm
7. Rubber insert
8. Spacer bushing
9. 20 Nm
