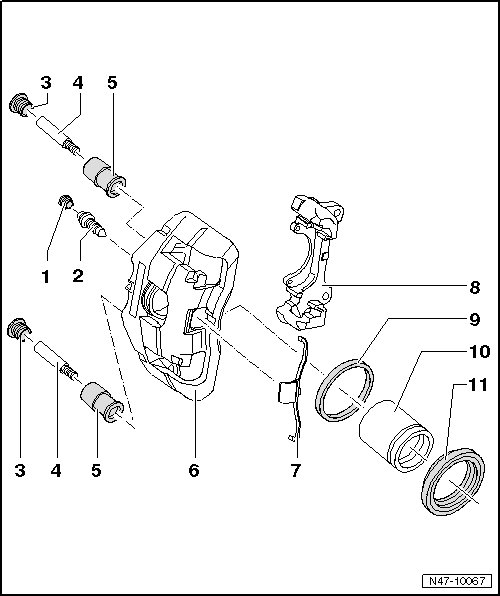

Front Brake Caliper Assembly Overview, FNR-G

Front Brake Caliper Assembly Overview, FNR-G

• Install complete repair kit when servicing.

• Only use mineral spirits to clean brake parts.

• Apply thin coat of assembly paste G 052 150 A2 to brake cylinders, pistons and seals.





1 - Dust Cap

• Install onto bleeder valve

2 - Bleeder Valve

• 12 Nm

• Apply a thin coat of assembly paste G 052 150 A2 to the threads before screwing in.

3 - Caps

• Insert in bushing

4 - Guide Pins

• 30 Nm

5 - Bushing

• Insert in brake caliper

6 - Brake Caliper

• Must not be removed

7 - Retaining Spring

• Insert in brake pad retaining spring and press below brake carrier

8 - Brake Carrier

• Bolt to brake caliper

9 - Seal

• Removing and installing, refer to => [ Piston, FNR-G Brake Caliper ] Piston, FNR-G Brake Caliper

10 - Pistons

• Removing and installing, refer to => [ Piston, FNR-G Brake Caliper ] Piston, FNR-G Brake Caliper

• Apply thin coat of assembly paste G 052 150 A2 to piston before inserting

11 - Protective Cap

• Removing and installing, refer to => [ Piston, FNR-G Brake Caliper ] Piston, FNR-G Brake Caliper

• Do not damage when installing piston
