Safety Circuit Breaker: Locations

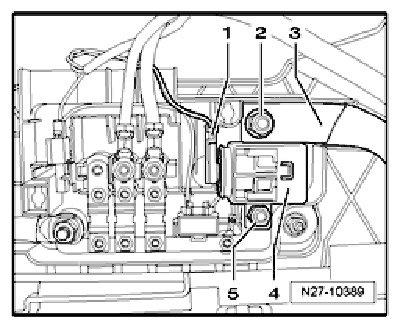

Battery Isolator, Component Overview







1 - Electrical connection - battery isolator
2 - Terminal nut - Battery positive (B+) connection for power supply panel
3 - Battery positive (B+) cable
4 - Battery isolator
5 - Self-locking nut for battery isolator

NOTE: Should a battery isolator be activated as a result of a collision, it must be replaced.
