Rear Lid Tail Lamp Assembly Overview

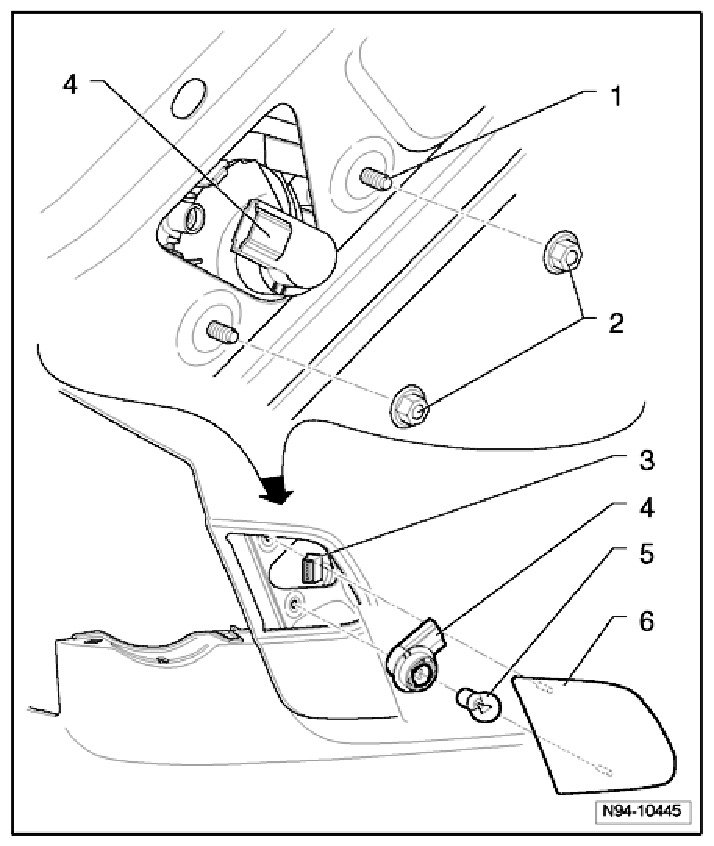

Rear Lid Tail Lamp Assembly Overview, Sedan







1 - Threaded pin on taillamp assembly housing
2 - Nuts
3 - Connector for taillamp assembly in luggage compartment lid
4 - Bulb holder
5 - Left Rear Fog Lamp L46 and Right Back-Up Lamp M17
- 12 V, P 21 W
6 - Taillamp housing
