Screen Separator Wall Mounting Components

Screen Separator Wall Mounting Components

Removing
- Remove screen separator wall

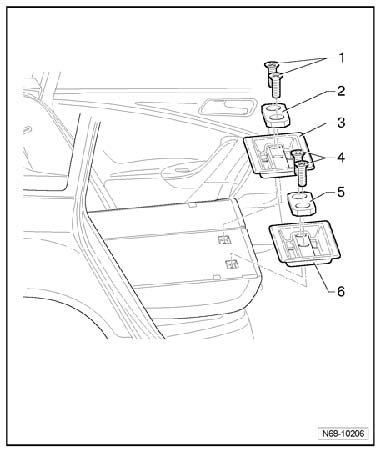

- Remove the two bolts - 1 - (8 Nm).
- Remove insert - 2 - and mounting component - 3 - from right backrest.
- Remove the two bolts - 4 - (8 Nm).







- Remove insert - 5 - and mounting component - 6 - from right backrest.







Installing
- To install, perform the steps used for removal in reverse order.
