Fluid Line/Hose: Service and Repair

6 SPD. A/T 09G FWD

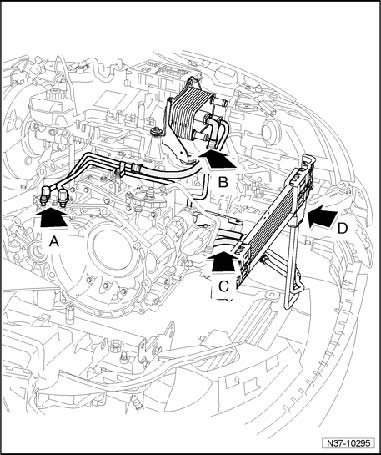

Automatic Transmission Fluid Lines, Cooler and Auxiliary Cooler Overview





A - ATF lines on transmission
B - External ATF cooler
C - ATF lines
D - Auxiliary ATF cooler

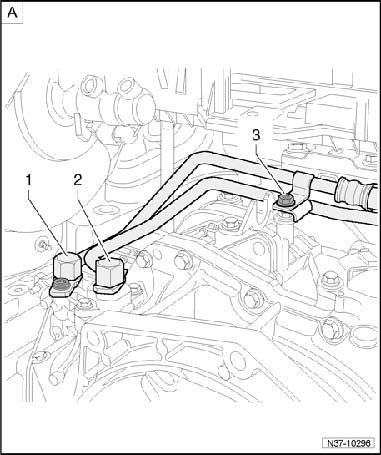

Automatic Transmission Fluid Lines on Transmission





1- ATF line
^ 20 Nm
2- ATF line
^ 20 Nm
3- Nut
^ 9 Nm

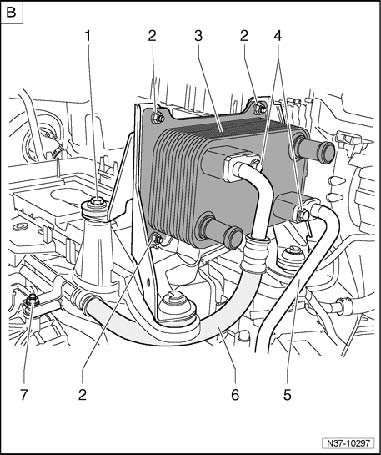

External Automatic Transmission Fluid Cooler





1- Bolt
^ 8 Nm
2- Nut
^ 9 Nm
3- External ATF cooler
4- Bolt
^ 9 Nm
5- ATF line
^ Supply line
6- ATF line
^ Return line
7- Nut
^ 9 Nm

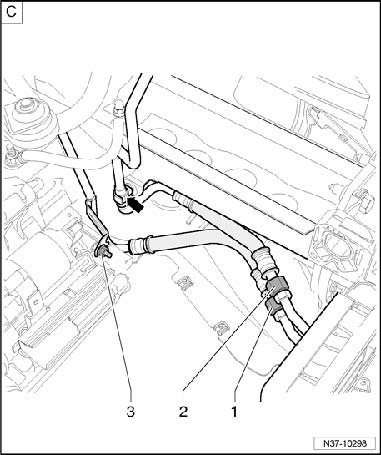

ATF Lines





1- ATF line
^ Return from auxiliary cooler
^ 25 Nm
2- ATF line
^ Supply to auxiliary cooler
^ 25 Nm
3- Nut
^ 9 Nm

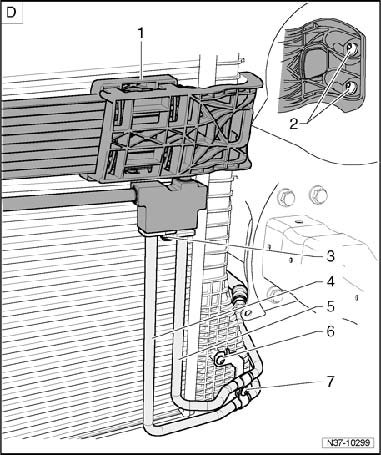

Auxiliary Automatic Transmission Fluid Cooler





1- Auxiliary ATF cooler
2- Bolt
^ 5 Nm
3- Bolt
^ 9 Nm
4- ATF line
^ Return line
5- ATF line
^ Supply line
6- Bolt
^ 5 Nm
7- Bolt
^ 9 Nm
