Remote Battery Jumper Terminal: Locations

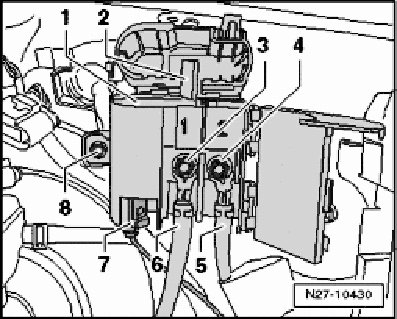

External Starter Point With Suppressor Overview







NOTE: Vehicles with battery in luggage compartment have an additional outside starter point in the engine compartment, left side. This consists of Terminal 30 Wire Junction TV2 and Suppressor C24.

1 - Interference suppression capacitor C24
2 - External starting point
3 - Mounting nut (collar nut) for terminal 30 wire to Starter B and to threaded connection (30) on E-box.
4 - Mounting nut (collar nut) for terminal 30 wire from Battery Interrupt Igniter N253 in luggage compartment, right side
5 - Terminal 30 wire from Battery Interrupt Igniter N253 in luggage compartment, right side
6 - Terminal 30 wire to Starter B and to threaded connection (30) on E-box.
7 - Harness connector for Suppressor C24
8 - Bolt
