Drive Belt: Locations

Ribbed Belt Drive Assembly Overview





1. Vibration Damper
^ With ribbed belt pulley
2. O-Ring
^ Replace
3. Bolt
^ Replace
^ 150 Nm plus an additional 90 degree (1/4 turn).
^ Use counter-holder T10355 to loosen and tighten
4. Ribbed Belt
^ Check for wear
^ Do not kink

CAUTION: Risk of destroying due to reversed running direction on a used ribbed belt.

- Before removing ribbed belt, marking running direction with chalk or felt-tip pen for reinstallation later.

^ When installing, make sure it is seated correctly on the pulleys

5. Ribbed Belt Tensioner
^ To release tension on ribbed belt, swing using open-end wrench.
^ Secure with locking pin T10060 A
6. Bracket
^ With oil pressure switch, oil filter and oil cooler
7. Bolt
^ 10 Nm
8. Generator
9. Bolt
^ 23 Nm
10. Bolt
11. A/C Compressor
^ Do not remove or disconnect refrigerant lines
12. Bolt
^ 25 Nm
13. Alignment Bushing
^ For air conditioning compressor





Ribbed Belt Tensioner
1. Tensioning device for ribbed belt
2. Support
3. Bracket for assemblies
4. Centering sleeve
5. Bolt

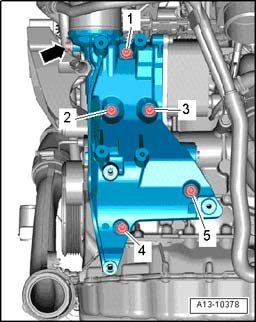

Bracket Tightening Sequence
- Mount the accessory assembly bracket and then mount the bolts - 4 -.

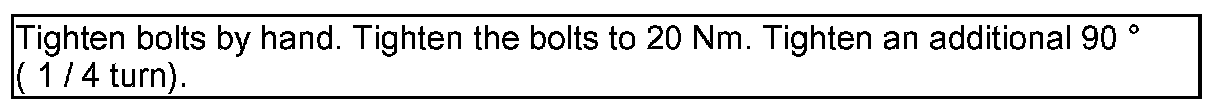

- Tighten bolts in 3 stages in sequence - 1 to 5 - as follows:
