Valve Body






Valve Body

CAUTION!
Do not run engine with the oil pan removed or without ATF filling and do not tow vehicle.

Valve body or wiring harnesses can also be removed with transmission installed.

Insert seals with ATF. Other lubricating substances lead to functional problems in the hydraulic transmission control.

Always replace a soiled or faulty valve body.

Do not use fluffy cloths!

After installing oil pan, ATF level must be checked and topped off => [ ATF Level, Checking ] Testing and Inspection.

Valve Body, Removing

Special tools, testers and auxiliary items required

Torque Wrench (V.A.G 1331)

Torque wrench (V.A.G 1756)

- Remove oil pan => [ Automatic Transmission Fluid Pan ] Service and Repair.

- Remove oil strainer => [ Oil Strainer ] Service and Repair.

- Disconnect connector form solenoid valves

To unlock connector housing on the solenoid valves, use a flat head screwdriver with a 2.5 mm shaft diameter.

CAUTION!
If a connector or the connector housing are damaged, then the wiring harness or solenoid valve must be replaced.

- Disconnect connectors

- Remove bracket for connectors

- Disconnect Transmission Fluid Temperature Sensor (G93) and carefully remove it from the valve body.

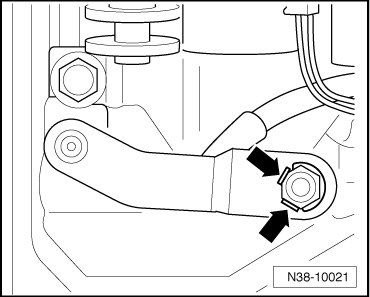

- Bend securing plate on shift lever back.





- Remove shift lever - 1 - from shift rod.

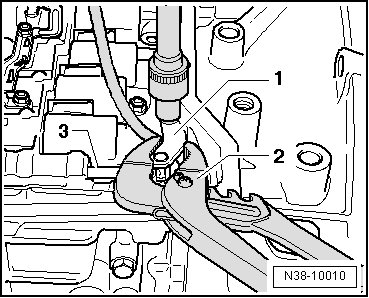

- Carefully hold shift lever - 1 - in place using pliers - 2 - so that torque is not transferred to Multi-Function Transmission Range (TR) Switch (F125).

- Make sure the valve - 3 - on the valve body in which the shift lever engages is not damaged.





The valve is very sensitive. Even minor damage leads to malfunction.

- Always slide valve into the body, secure it against falling out and never exchange it.

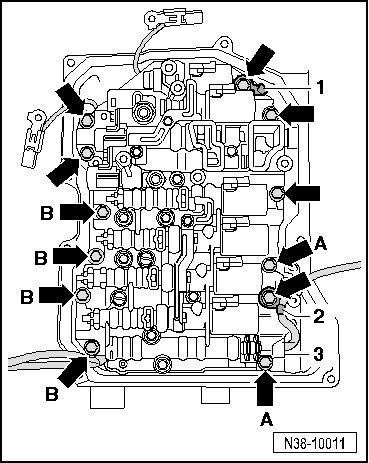

- Loosen marked bolts (quantity 12) - arrows -.





When loosening other bolts, function of the valve body will be influenced or valve body splits up.

- Remove brackets - 1 - and - 2 -.





- Disconnect valve body and remove.

- When removing valve body, pay attention to the damper pistons - 2 -.





- Remove pistons with spring.

Valve Body, Installing

To make sure that the lines do not get pinched during installation:

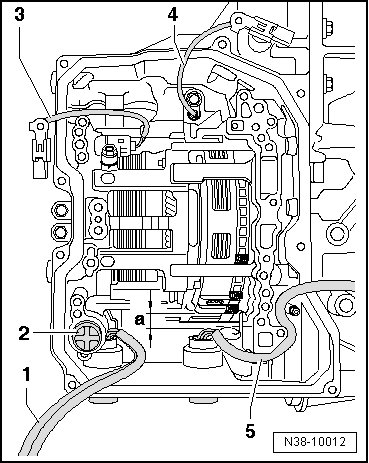

- Route and attached the wires - 1 -, - 3 -, - 4 - and - 5 - as shown in the illustration.





Distance - a - must be observed so that wiring harness - 5 - does not make contact with planetary gear and then would be damaged while driving.

The valve body is secured with bolts with three different lengths.

- Sort bolts according to length before installing valve body.

- Coat damper pistons - 2 - with ATF and install the spring.





- Insert valve body carefully and secure it using 2 bolts.

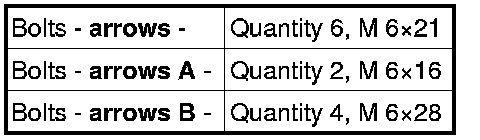

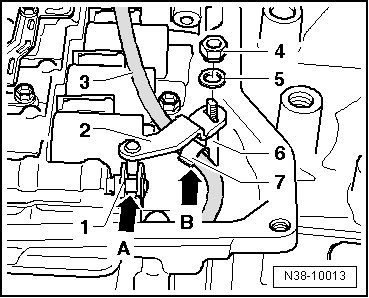

Bolt lengths and locations on the valve body









- Make sure the lines are not pinched.

- Install remaining screws and bracket - 1 - and - 2 - and counter turn by hand.





- Install Transmission Fluid Temperature Sensor (G93) and tighten, tightening specification => [ Valve Body Tightening Specifications ] Valve Body Tightening Specifications - Gears, Hydraulic Controls.

- Connect connectors (quantity 8) to the solenoid valve => [ Line Routing, Connectors and Bracket on Valve Body ] Line Routing, Connectors and Bracket on Valve Body.

- Connect bracket for connectors => [ Line Routing, Connectors and Bracket on Valve Body ] Line Routing, Connectors and Bracket on Valve Body, tightening specification => [ Valve Body Tightening Specifications ] Valve Body Tightening Specifications - Gears, Hydraulic Controls.

- Connect connectors

- Attach valve body from the inside toward the outside diagonally; tightening specification => [ Valve Body Tightening Specifications ] Valve Body Tightening Specifications - Gears, Hydraulic Controls.

- Install shift lever.

- Tighten nut for selector lever - 1 -, tightening torque => [ Valve Body Tightening Specifications ] Valve Body Tightening Specifications - Gears, Hydraulic Controls.





- Carefully hold shift lever - 1 - in place using pliers - 2 - so that torque is not transferred to Multi-Function Transmission Range (TR) Switch (F125).

- Bend securing plate on nut up.





- Remove oil strainer => [ Oil Strainer ] Service and Repair.

- Install oil pan => [ Automatic Transmission Fluid Pan ] Service and Repair.

- Add ATF, check ATF level and top off => [ ATF Level, Checking ] Testing and Inspection.

- Connect (VAS 5051) and advance program until " Function/component selection" is displayed.

- Then press "Powertrain (Repair Group 01; 10 to 26; 28 to 39) ".

- After that "6 Spd. Automatic Transmission 09G".

- Press "01 - On Board Diagnostic".

- Press "Functions".

- Press "Basic Setting".
