Intake Manifold: Locations

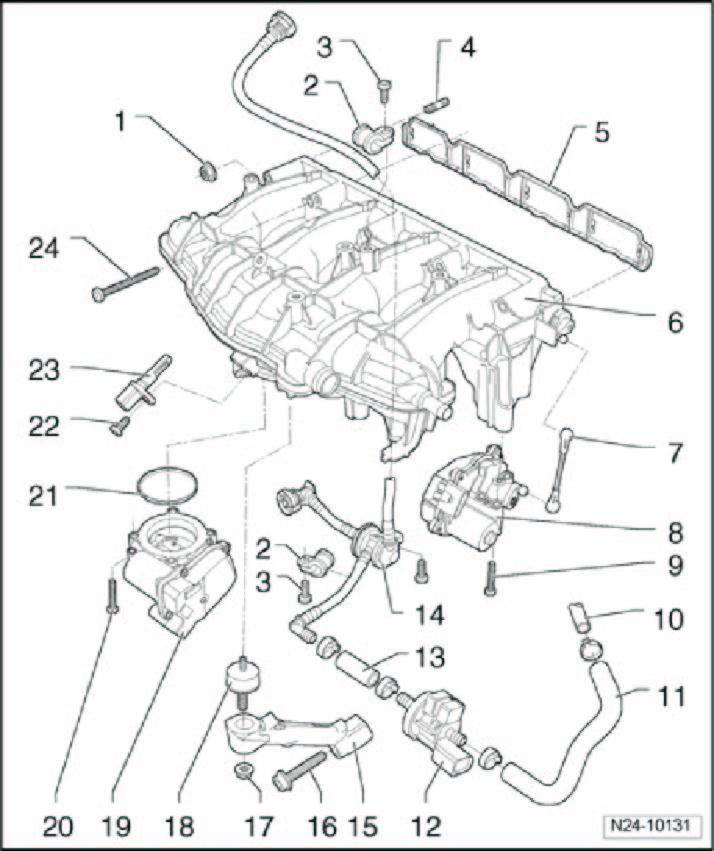

Intake Manifold Assembly Overview







1 - 10 Nm
2 - Retaining clip
3 - 3 Nm
4 - Stud bolt, 10 Nm
5 - Gasket
- Replace
6 - Intake manifold
- With intake manifold flaps
7 - Coupling rod
8 - Intake flap motor V157 with intake manifold runner position sensor G336
9 - 7 Nm
10 - To EVAP canister
11 - Hose
12 - Evaporative emission (EVAP) canister purge regulator valve 1 N80
13 - Hose
14 - Double check-valve
15 - Intake manifold support
16 - 25 Nm
17 - 10 Nm
18 - Bonded rubber bushing
19 - Throttle valve control module J338
- With throttle drive (for Electronic Power Control (EPC)) G186, throttle drive angle sensor 1 (for Electronic Power Control (EPC)) G187 and throttle drive angle sensor 2 (for Electronic Power Control (EPC)) G188
20 - 7 Nm
21 - Seal
- Replace if damaged
22 - 5 Nm
23 - Intake Air Temperature (IAT) sensor G42
24 - 10 Nm
