Home
>>
Volkswagen
>>
2008
>>
Jetta Sedan (1K2) L5-2.5L (CBUA)
>>
Repair and Diagnosis
>>
Relays and Modules
>>
Relays and Modules - Power and Ground Distribution
>>
Power Distribution Relay
>>
Locations
>>

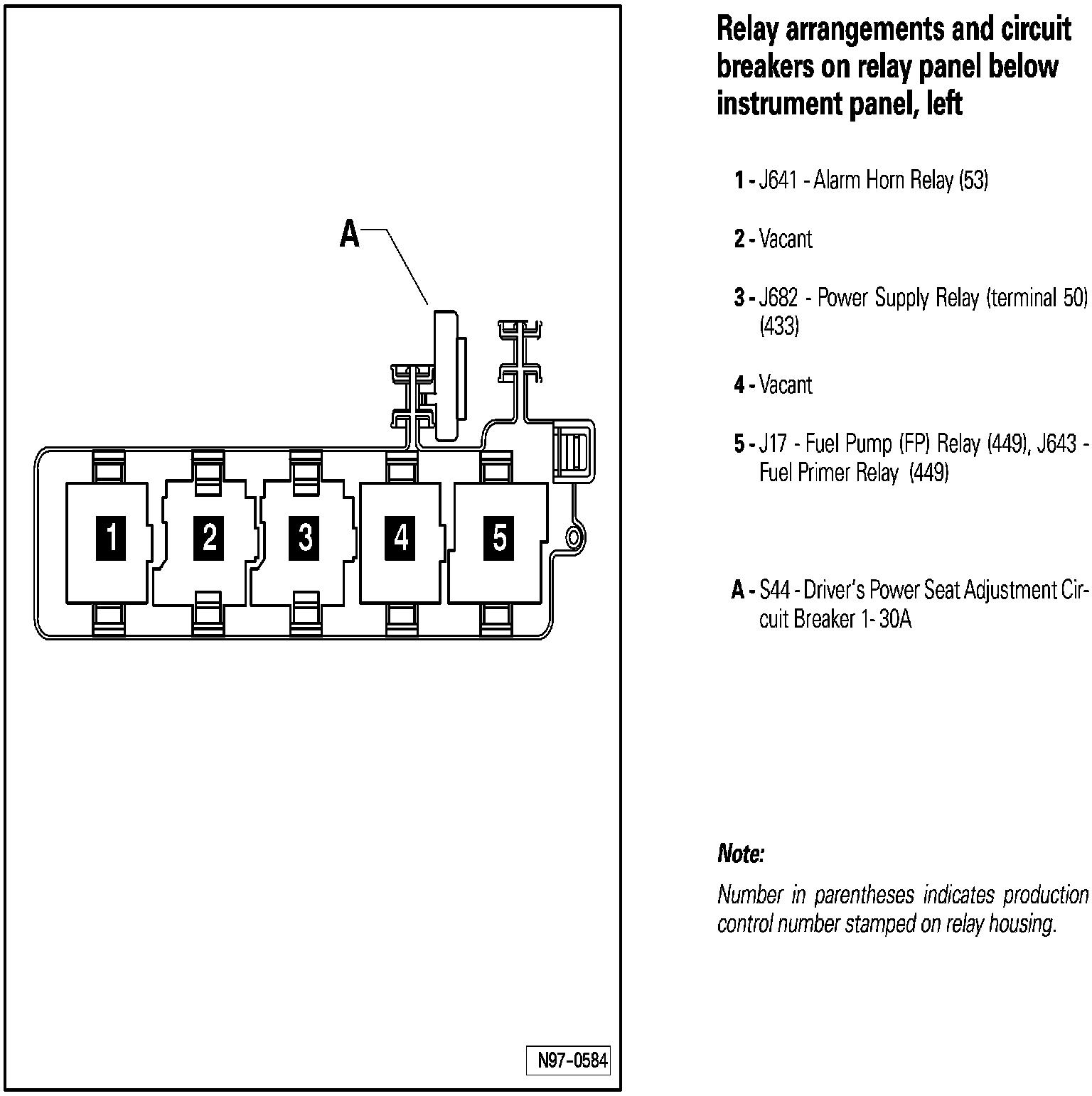

Relay Arrangements and Circuit Breakers on Relay Panel Below Instrument Panel, Left

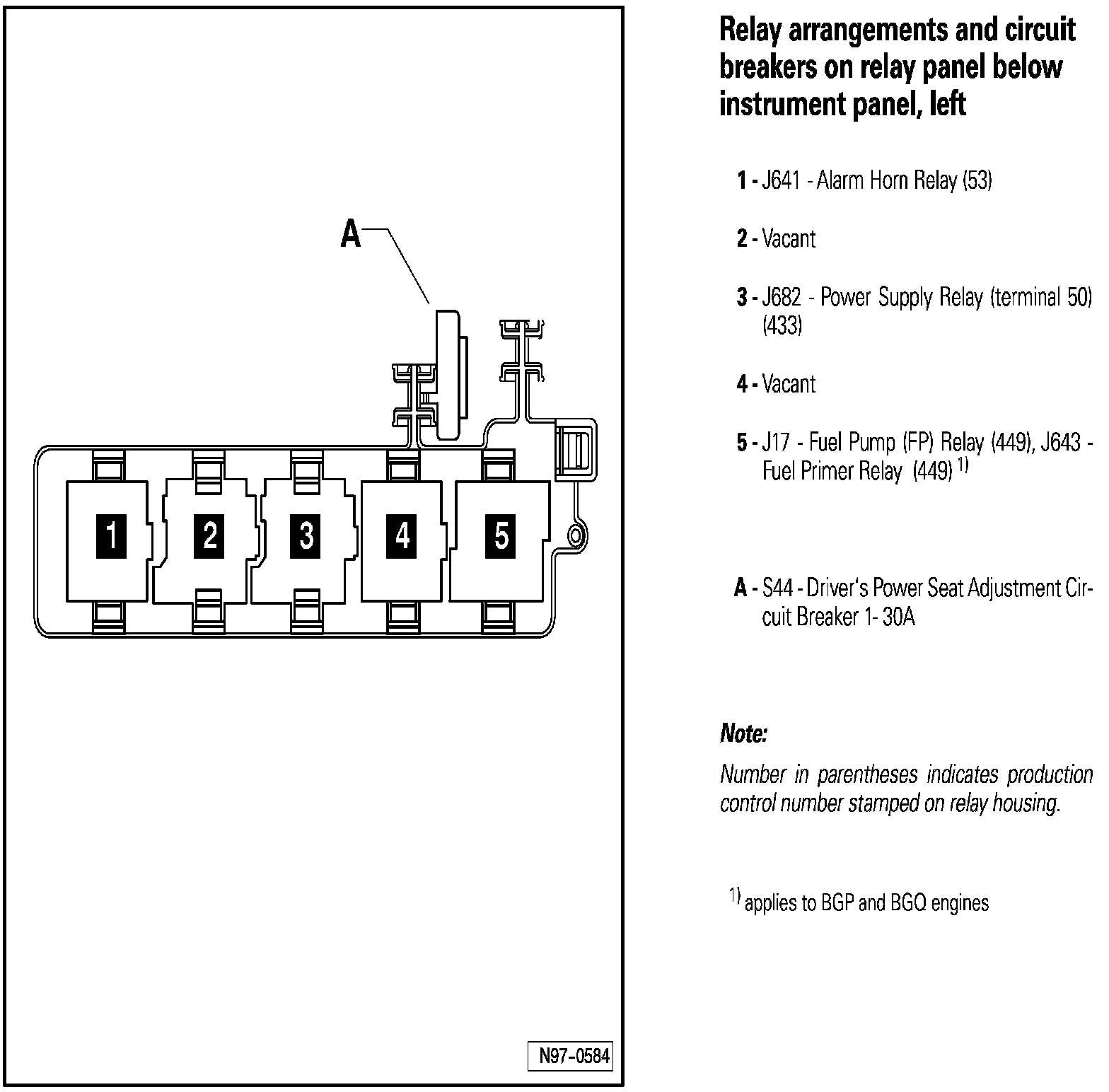

Relay Arrangements and Circuit Breakers on Relay Panel Below Instrument Panel, Left
