Jetta Sedan (1K2) L5-2.5L (CBUA)
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Power Distribution Relay
>>
Locations
>>

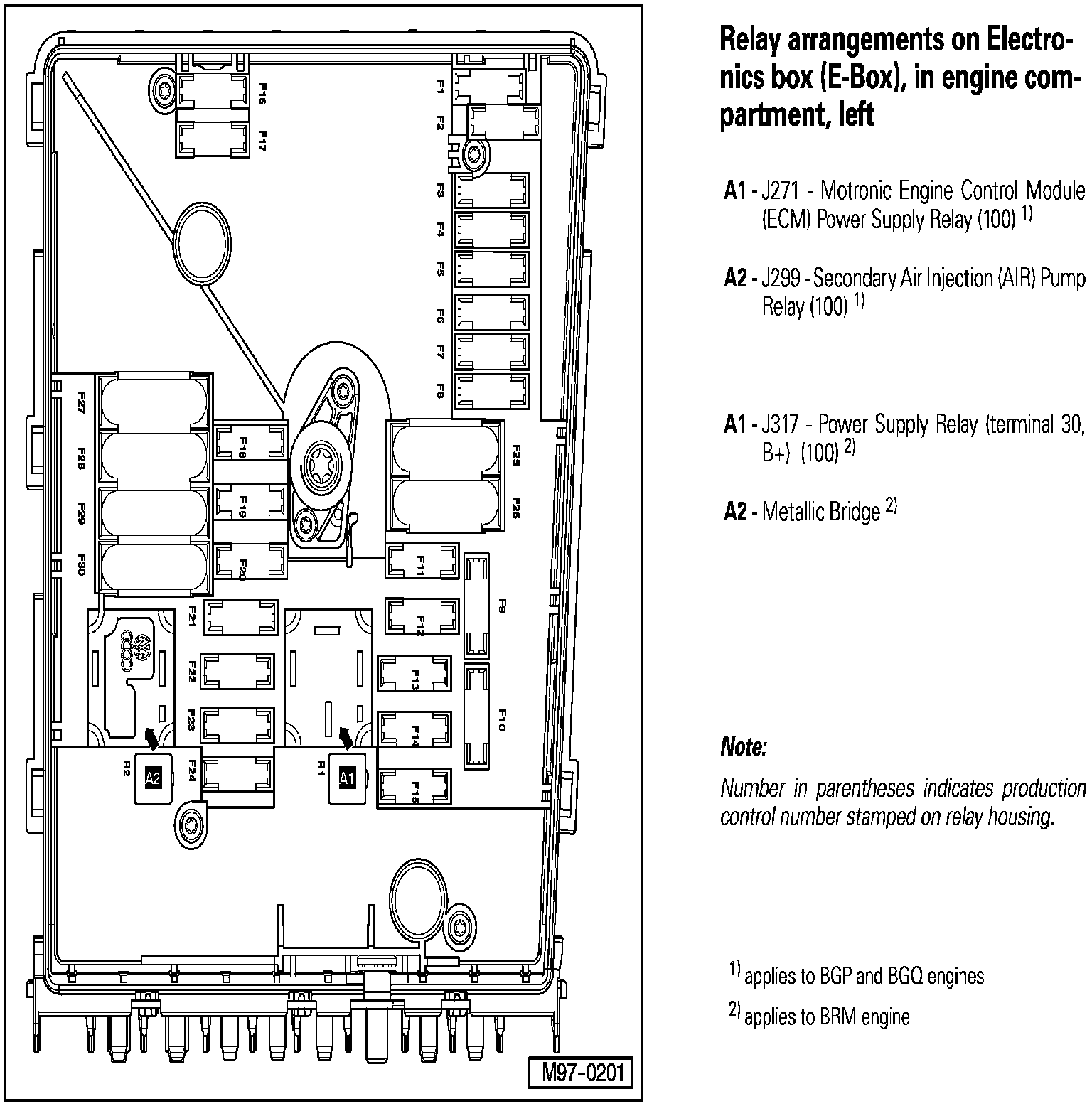

Relay Arrangements on Electronics Box (E-Box), In Engine Compartment, Left

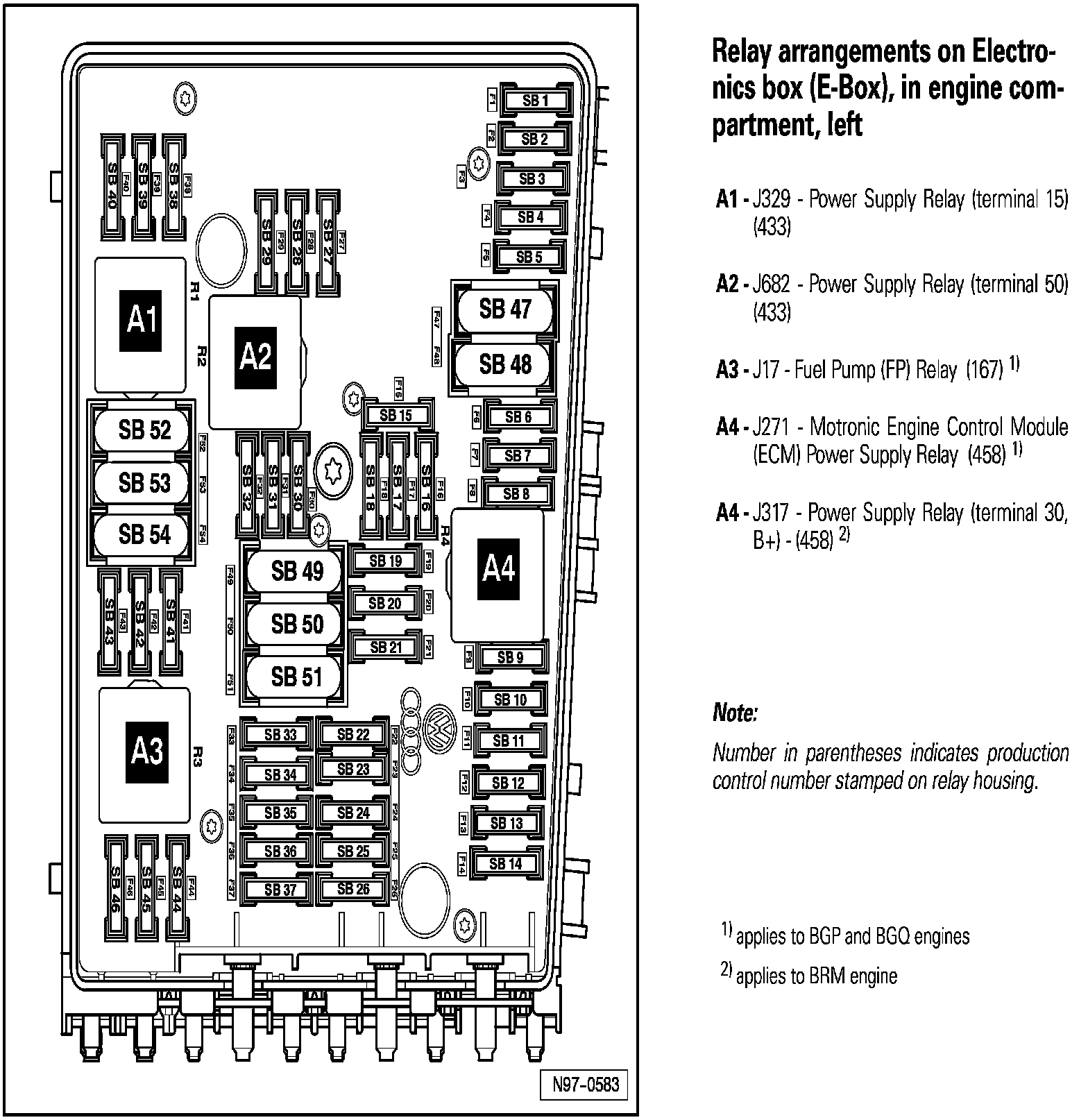

Relay Arrangements on Electronics Box (E-Box), In Engine Compartment, Left
