Rear Door Trim Sun Shade

Rear Door Trim Sun Shade

• Removal and installation is described for the left-hand side of the vehicle. Removal and installation for the right-hand side is performed in the same manner.

Removing

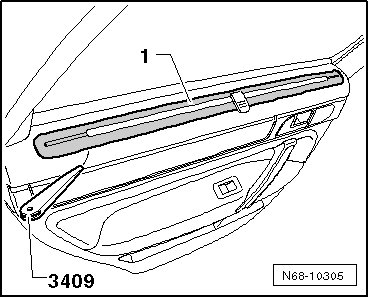

- Pry the cover - 1 - out of the door trim using the Trim Removal Wedge (3409).





- Rear Door Trim, Removing --> [ Rear Door Trim ] Service and Repair

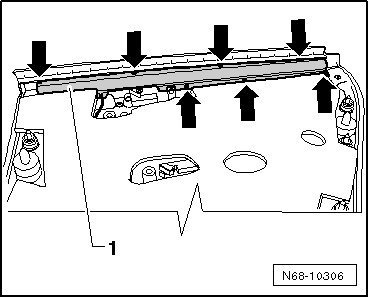

- Remove the seven bolts - arrows - on the rear side of the door trim.





- Remove the shade - 1 - downward out of the door trim.

Installing

- Perform the steps used for removal in reverse order.
