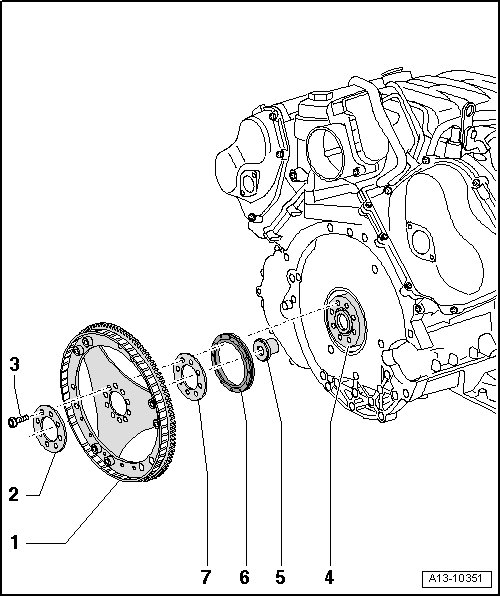

Drive Plate Assembly Overview

Drive Plate Assembly Overview





1 Drive plate

• Removing and installing, refer to --> [ Drive Plate ] Drive Plate.

• Mark for reinstallation.

2 Washer

• 3.4 mm thick.

• Mark for reinstallation.

3 Bolt, 60 Nm + 90° (1/4 turn) additional turn

• Replace

4 Crankshaft

5 Centering bushing

• For torque converter.

• Check availability.

6 Seal

• For crankshaft, timing chain side

• Replacing, refer to --> [ Crankshaft Seal, Timing Chain Side ] Service and Repair.

7 Spacer washer

• 1.5 mm thick.

• Mark for reinstallation.
