Flex Plate: Locations

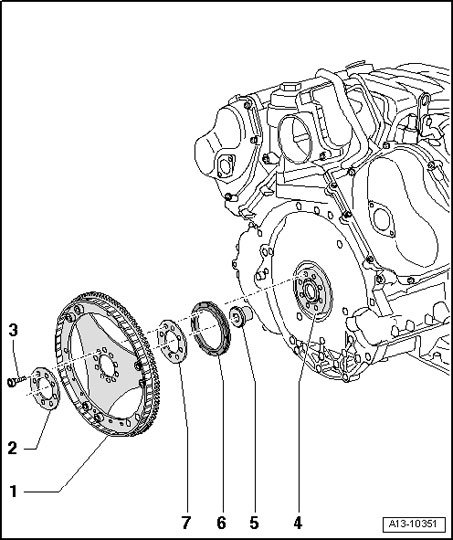

Drive Plate, Assembly Overview

Drive Plate, Assembly Overview:

1 - Drive plate
^ Mark for re-installation

2 - Washer
^ 3.4 mm thick
^ Mark for re-installation

3 - 60 Nm plus an additional 1/4 turn (90 °)
^ Replace

4 - Crankshaft
5 - Centering bushing
^ For torque converter
^ Check availability

6 - Seal
^ For crankshaft, timing chain side

7 - Spacer washer
^ 1.5 mm thick
^ Mark for re-installation
