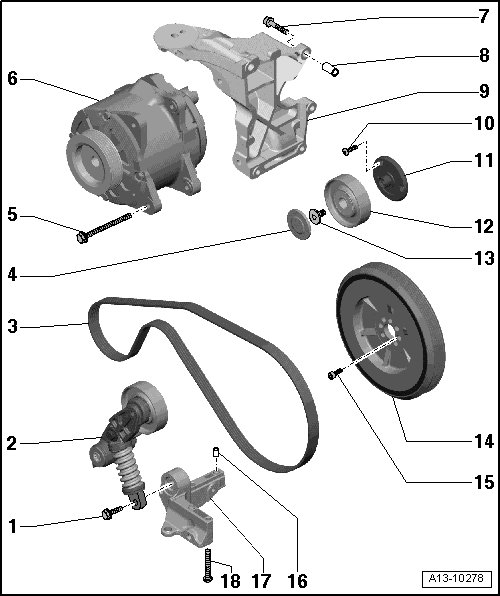

Generator Assembly Overview

Generator Assembly Overview





1 Screw

• 22 Nm

2 Tensioner for ribbed belt

3 Ribbed belt

• Checking ribbed belt --> [ Ribbed Belt, Checking ] Testing and Inspection.

• Ribbed belt routing --> [ Ribbed Belt Routing ] Ribbed Belt Routing

4 Cap

5 Screw

• M8 x 3.54 in

• 22 Nm

6 Generator

• B+ wire fastener to generator, 15 Nm --> [ B+ Cable Mount to Generator ] Description and Operation

• Neither the voltage regulator nor the carbon brushes can be replaced individually; if a repair is required, the entire generator must be replaced.

• Generator, removing and installing --> [ Generator ] Generator

7 Screw

• M8 - 22 Nm

• M10 - 46 Nm

8 Bushing

• Qty. 2

9 Bracket

10 Screw

• 9 Nm

11 Mounting bracket

• for idler pulley

12 Ribbed belt idler pulley

13 Screw

• 22 Nm

14 Belt pulley - crankshaft

15 Screw

• 22 Nm + 45° (1/8 additional turns)

• Replace

16 Bushing

• Qty. 2

17 Bracket

• for ribbed belt tensioner

18 Screw

• 9 Nm
