Communications Control Module
>>
Diagrams
>>
Connector Views
Connector Views

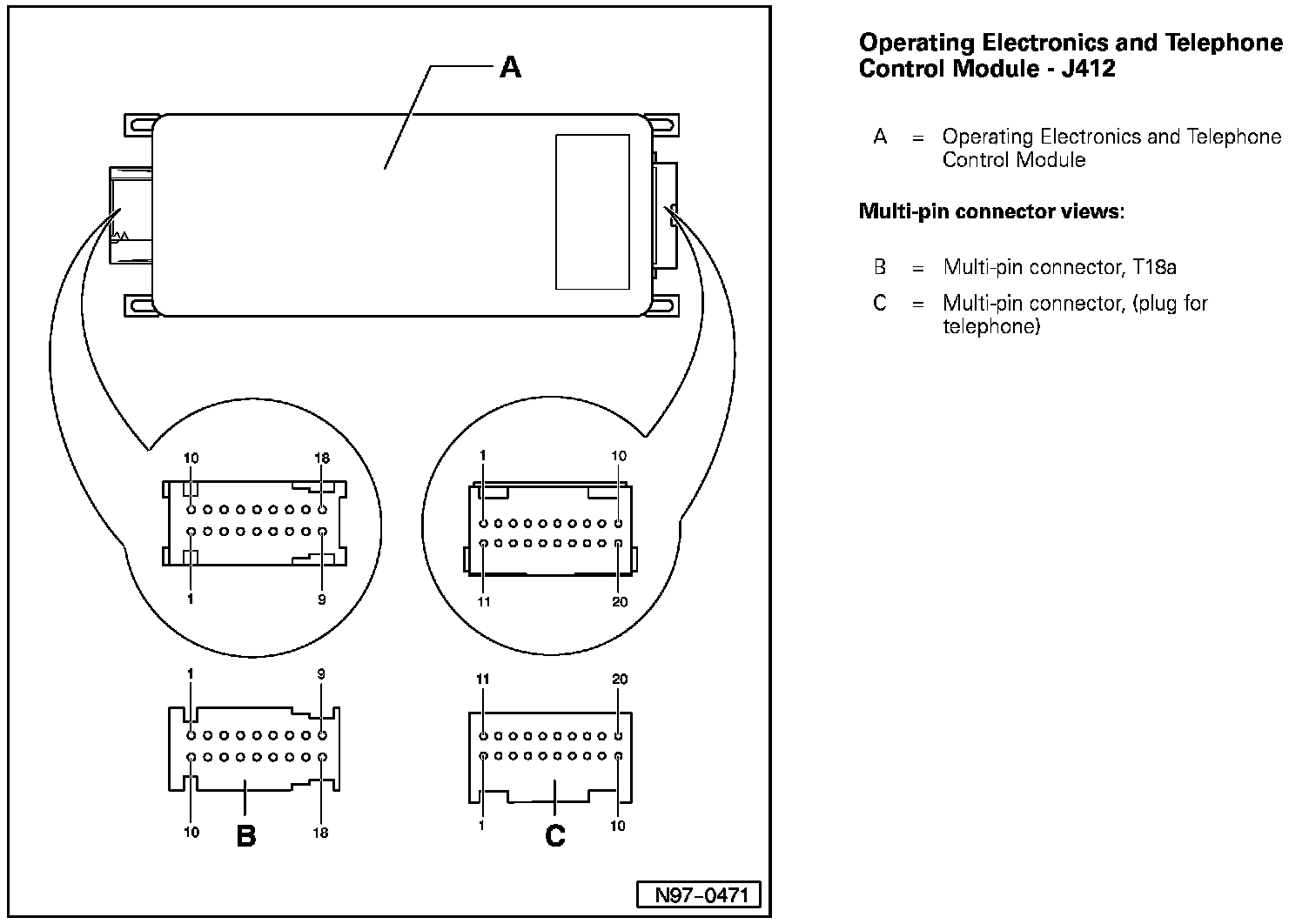

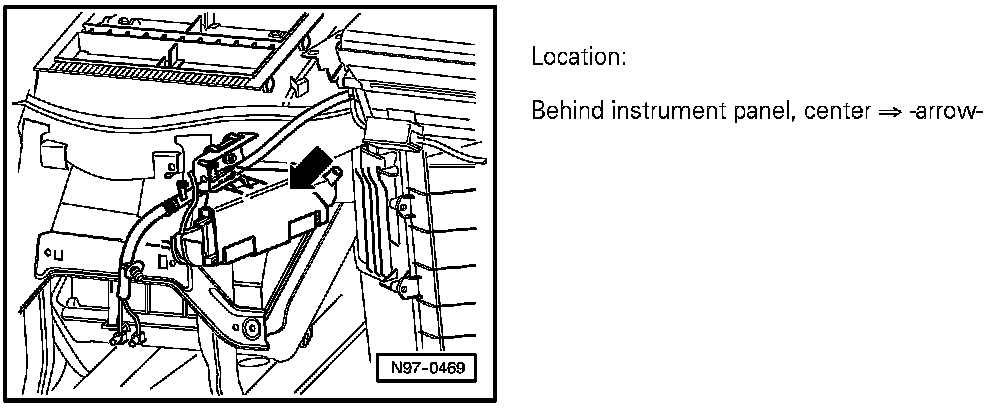

Operating Electronics And Telephone Control Module - J412 (part 1):
Operating Electronics And Telephone Control Module - J412 (part 2):
