Cylinder Bank 1, Assembly Overview

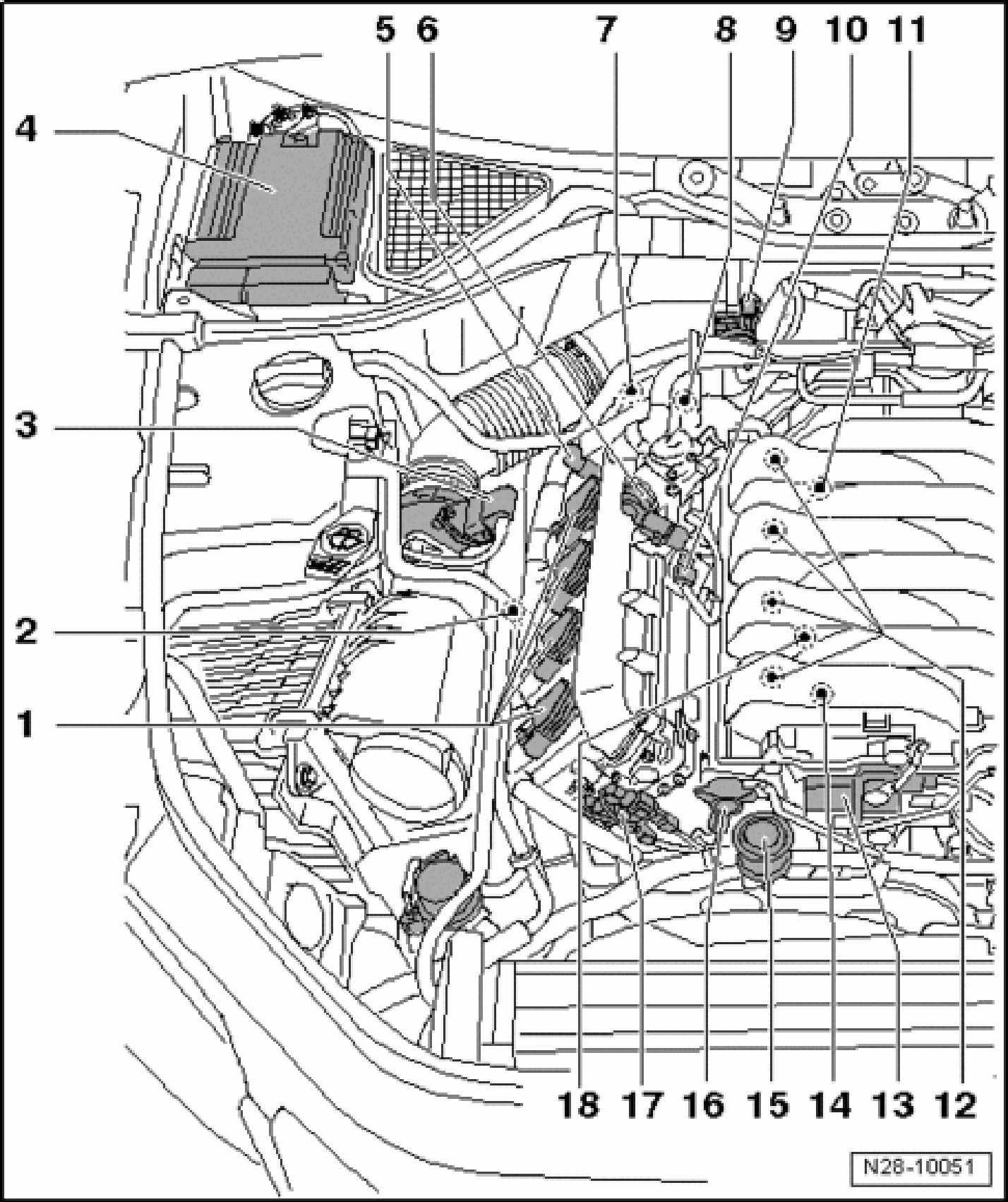

Cylinder Bank 1, Assembly Overview







1 - Ignition coils, Cylinder bank 1
- Ignition Coil 1 with Power Output Stage N70
- Ignition Coil 2 with Power Output Stage N127
- Ignition Coil 3 with Power Output Stage N291
- Ignition Coil 4 with Power Output Stage N292
- Component location
2 - Camshaft position (CMP) sensor 3 G300
- Component location
3 - Mass Air Flow (MAF) Sensor G70 / Intake Air Temperature (IAT) Sensor G42
4 - Engine control module J623
- Removing and installing.
5 - Camshaft Adjustment Valve 1 (exhaust) N318
- Component location
6 - Fuel Metering Valve N290
- In high pressure pump
- Component location
7 - Engine Coolant Temperature (ECT) Sensor G62
- Component location
8 - Camshaft Adjustment Valve 1 N205
- Component location
9 - Evaporative Emission (EVAP) Canister Purge Solenoid Valve 1 N80
- Component location
10 - Camshaft Position (CMP) sensor G40
- Component location
11 - Knock Sensor (KS) 2 G66
- Component location
- Knock sensors, removing and installing .
12 - Fuel injectors, Cylinder bank 1
- Cylinder 1 Fuel Injector N30
- Cylinder 2 Fuel Injector N31
- Cylinder 3 Fuel Injector N32
- Cylinder 4 Fuel Injector N33
- Component location
- Removing and installing.
13 - Variable Intake Manifold Runner Motor V183
- Component location
14 - Fuel Pressure Sensor G247
- Component location
15 - Secondary Air Injection (AIR) combi-valve
- For cylinder bank 1
16 - Intake Manifold Runner Position Sensor G336
- Component location
- After replacement, adapt in "Guided Functions" operating mode in "Adapting intake manifold runner position sensor"
17 - Electrical connectors
- Black for Knock Sensor 1 G61
- Brown for Knock sensor (KS) 2 G66
18 - Knock Sensor (KS) 1 G61
- Component location
- Knock sensors, removing and installing.







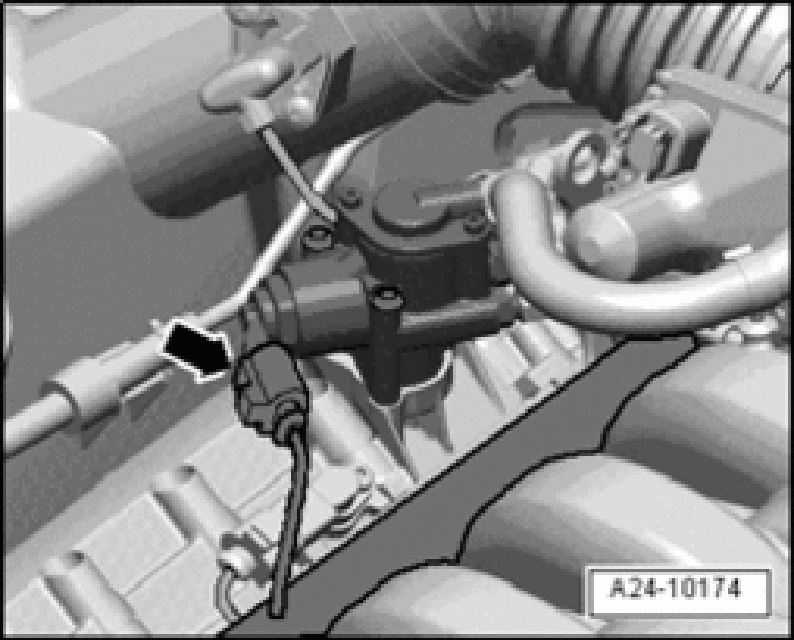

Fuel Metering Valve N290 location
- In right high pressure pump - arrow -.

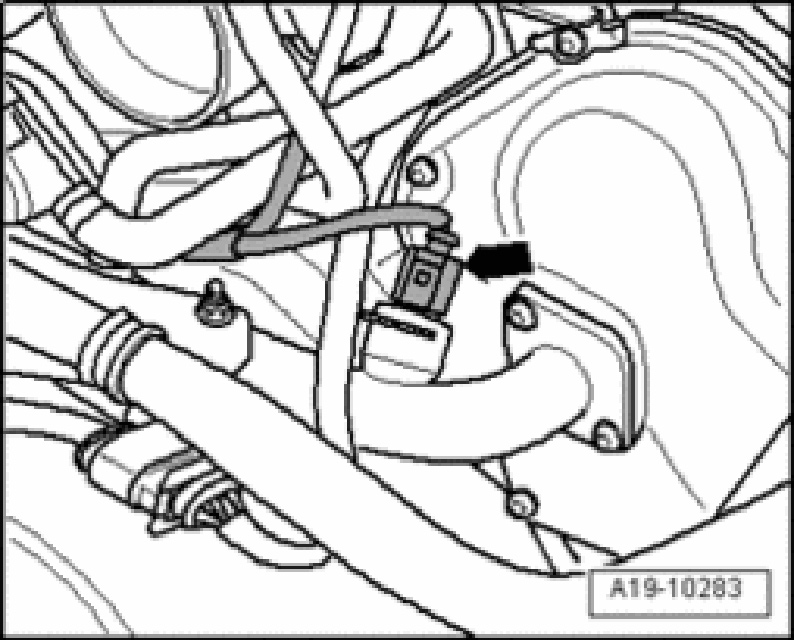

Component location of Engine Coolant Temperature (ECT) Sensor G62
- Right on rear coolant pipe - arrow -.

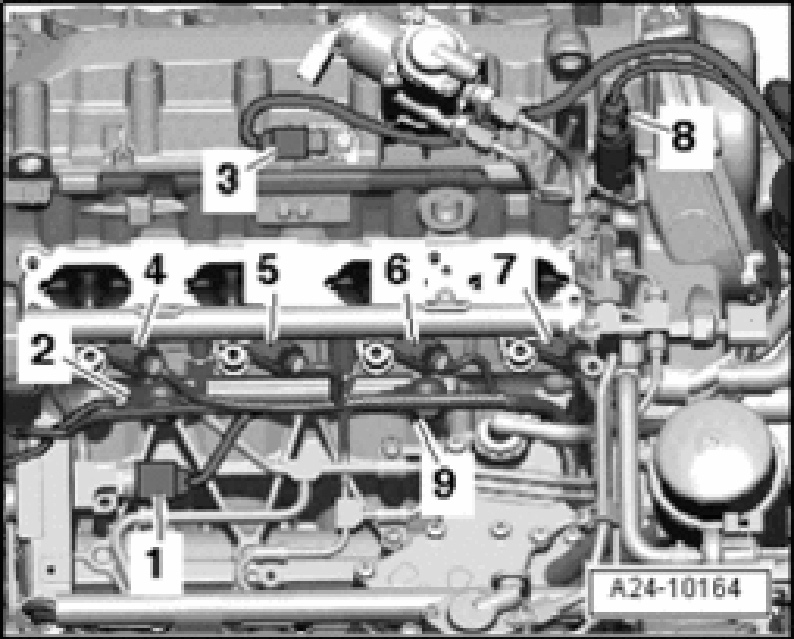

Locations inside on right cylinder head
1. Fuel Pressure Sensor G247
2. Knock Sensor (KS) 1 G61
3. Camshaft Position (CMP) sensor G40
4. Cylinder 1 Fuel Injector N30
5. Cylinder 2 Fuel Injector N31
6. Cylinder 3 Fuel Injector N32
7. Cylinder 4 Fuel Injector N33
8. Camshaft Adjustment Valve 1 N205
9. Knock Sensor (KS) 2 G66

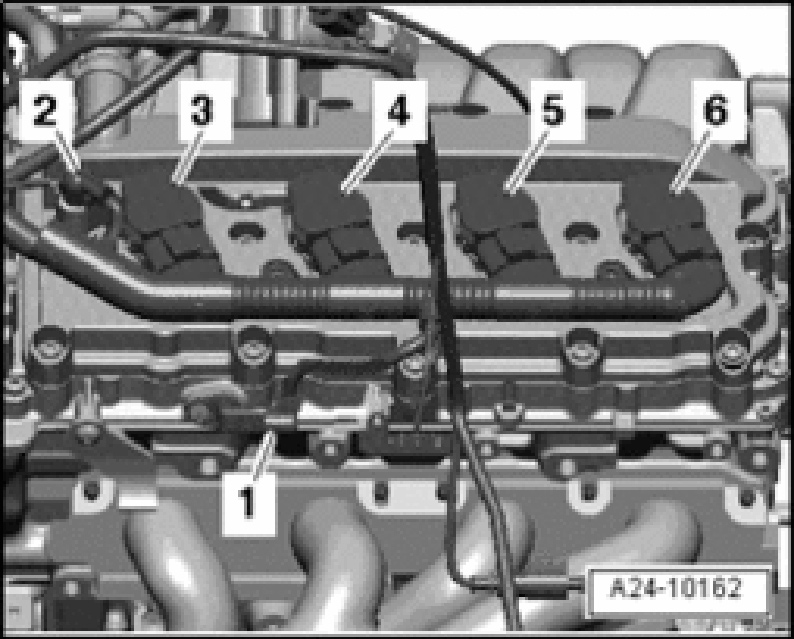

Locations outside on right cylinder head
1. Camshaft position (CMP) sensor 3 G300
2. Camshaft Adjustment Valve 1 (exhaust) N318
3. Ignition Coil 4 with Power Output Stage N292
4. Ignition Coil 3 with Power Output Stage N291
5. Ignition Coil 2 with Power Output Stage N127
6. Ignition Coil 1 with Power Output Stage N70







Evaporative Emission (EVAP) Canister Purge Regulator Valve N80 location
1. Evaporative Emission (EVAP) Canister Purge Solenoid Valve 1 N80
2. Evaporative Emission (EVAP) Canister Purge Regulator Valve N80 electrical connector







Location at front of intake manifold
1. Intake Flap Motor V157 (brown connector)
2. Intake Manifold Runner Position Sensor G336
3. Variable Intake Manifold Runner Motor V183 (black connector)
4. Intake Manifold Runner Position Sensor 2 G512
