Engine Oil Check Valve: Locations

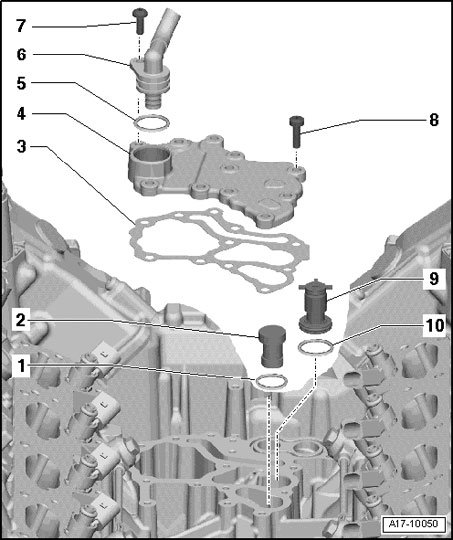

Oil Check Valve and Spray Nozzle Valve, Assembly Overview

Oil Check Valve and Spray Nozzle Valve, Assembly Overview:

1 - O-ring
^ Replace

2 - Spray nozzle valve

3 - Gasket
^ Replace

4 - Cover
5 - O-ring
^ Replace

6 - Hose
^ For crankcase ventilation

7 - 7 Nm
8 - 9 Nm
9 - Oil check valve
10 - O-ring
^ Replace
