Power Take Off Drive Chain Assembly Overview

Power Take Off Drive Chain Assembly Overview

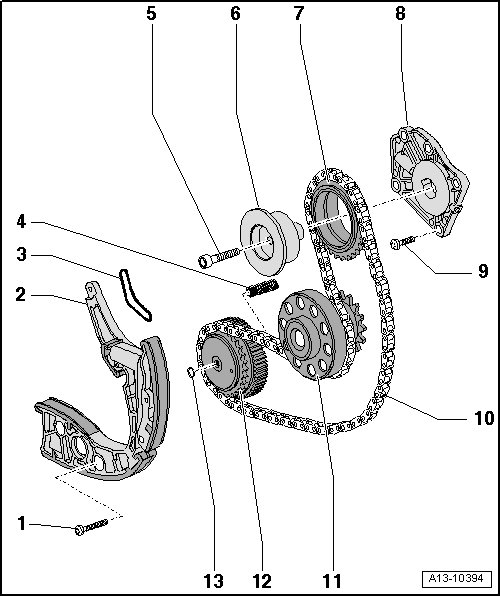

1 Bolt, 9 Nm

2 Chain tensioner

• With guide rail

3 Gasket

• Replace

4 Spring

5 Bolt, 42 Nm

6 Pivot pin for idler sprocket

7 Idler sprocket for chain for power take off

8 Idler sprocket mounting bracket

9 Bolt, 9 Nm

10 Power take off drive chain

• Before removing, mark chain running direction with paint. Reversing the rotation direction of a used chain can destroy it.

• Removing and installing, refer to --> [ Power Take Off Drive Chain ] Power Take Off Drive Chain.

11 Crankshaft

12 Drive sprocket for power take off

13 Circlip
