Brake Pedal Assy: Locations

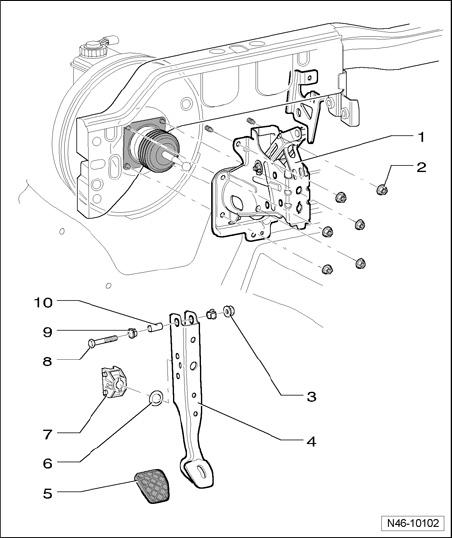

Brake pedal, assembly overview

CAUTION: The path of the brake pedal must not be shortened via extra floor mats.

Before installing, lubricate all mounting points with grease, part no. G 000 602.





1. Mounting bracket
2. Self-locking hex nut, 25 Nm
3. Self-locking hex nut, 25 Nm
4. Brake pedal
^ Clip brake pedal to push rod for brake booster
5. Cover
6. Ball socket
7. Wheel hub support
^ For ball head of brake servo push rod
8. Hex head bolt
9. Bushing
10. Pivot pin
