Transmission Cooler: Service and Repair

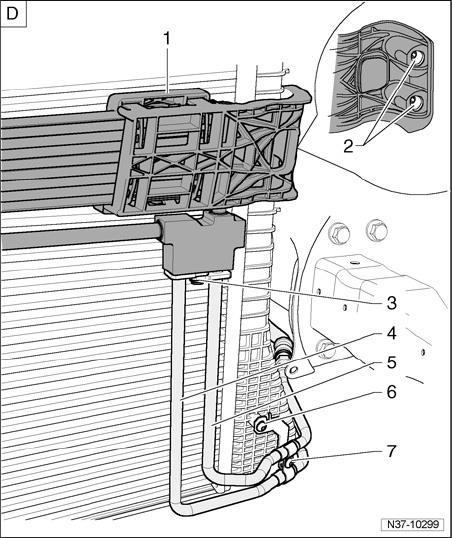

Auxiliary ATF cooler





1 - Auxiliary ATF cooler

2 - Bolt
^ 5 Nm

3 - Bolt
^ 9 Nm

4 - ATF line
^ Return line
^ Always replace O-ring

5 - ATF line
^ Supply line
^ Always replace O-ring

6 - Bolt
^ 5 Nm

7 - Bolt
^ 9 Nm

ATF lines





1 - Bolt
^ 20 Nm

2 - ATF line
^ Supply and return line
^ Always replace O-ring
