Campaign - Power Folding Mirror Modification

Condition

Instructions: Perform this procedure on all applicable vehicle within the Limited new vehicle Warranty

RVU - Electrically Folding Exterior Mirror, Installing Rubber Bumper (OW)





00 06 13 Oct. 18, 2006, 2013195

Tip:
This Technical Bulletin is in effect for 12 months from date of publication as listed above. After that date, this Technical Bulletin will expire and no longer be in effect.
Procedure must be performed ONLY on applicable vehicles in Dealer inventory.

Requirements
Vehicle must meet ALL of the following criteria:
- Procedure is valid only for vehicles that show the (OW) code open on the ElsaWeb Campaign / Action Information inquiry screen on the day of repair.
- Vehicle must be within the Limited New Vehicle Warranty.
- Procedure must be performed within the allotted time frame stated in this Technical Bulletin.

Technical Background
A wiring harness may interfere with the proper installation of the mirror cover to the mirror housing, possibly leaving a small gap.

Production Solution
Installation of adhesive backed bumper, Part No: ZVW269008, to the electrically folding mirror to improve wire harness route and prevent mirror half separation appearance as of CW 30/06.

Service
Input VIN into Elsa and check Campaign / Action Information inquiry screen for open Code (OW).

Electrically Folding Exterior Mirror Only

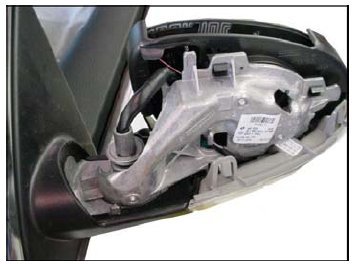

A wiring harness may interfere with the proper installation of the mirror cover to the mirror housing, possibly leaving a small gap.

While driving, air can enter the gap causing a whistling noise.

- Applying an adhesive backed bumper, Part No: ZVW269008, will prevent the wire harness from interfering with the proper installation of the mirror housing cover. See ElsaWeb - Repair Manual, BODY, Body Exterior, 66 Exterior equipment, Exterior rearview mirror for housing disassembly.

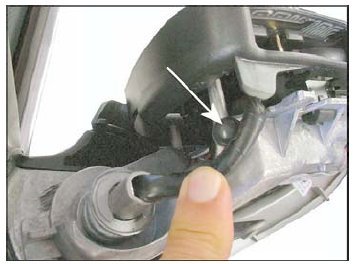

- Insert adhesive backed bumper, Part No: ZVW269008, on the inner aluminum casting, -arrow-.

Tip: This retains the wiring harness away from the white plastic clip.

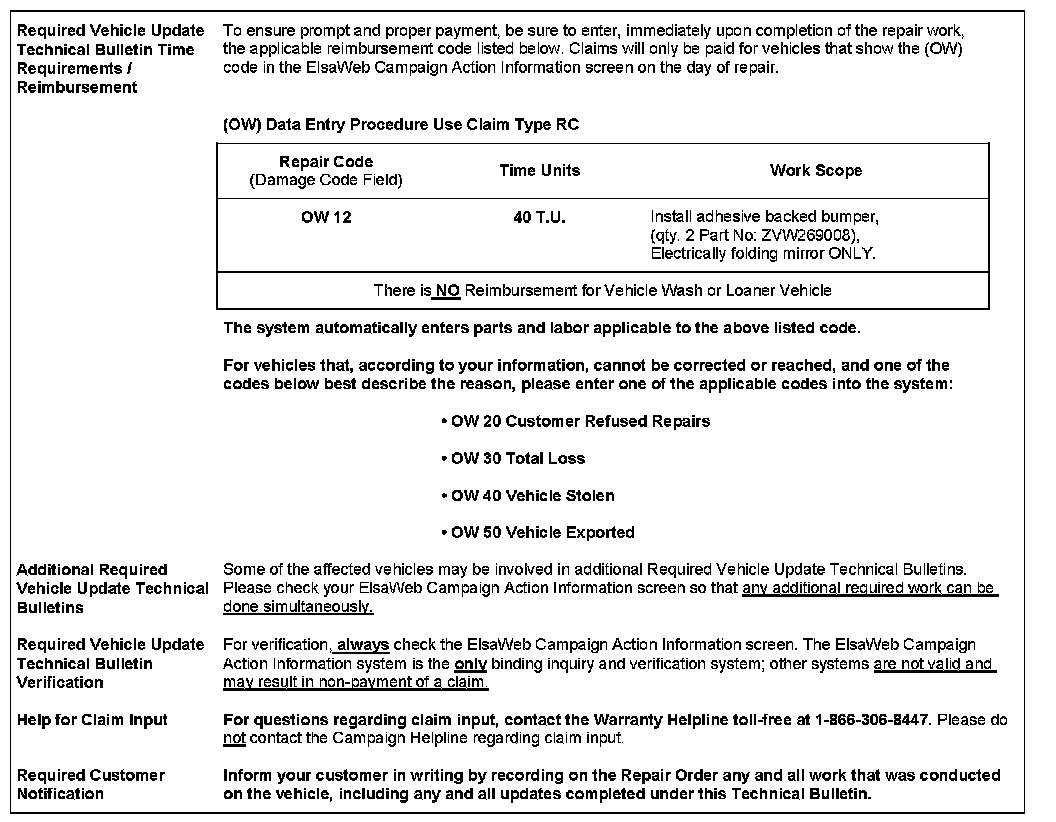

Warranty





Required Parts and Tools
