Body - Hood Lock Release Handle Support Bracket Broken
55 07 05July 11, 2007
2015354

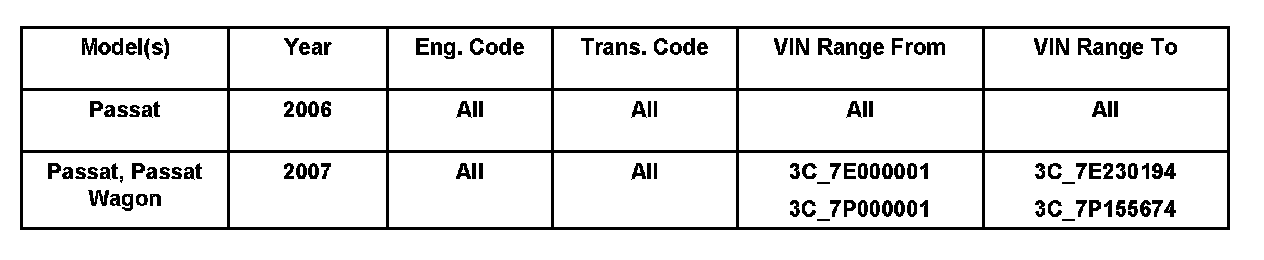

Vehicle Information
Condition
Hood Lock Release Handle Support Bracket Broken
The support bracket of the handle for releasing hood lock is broken.
Technical Background Insufficient material strength of support bracket for hood lock handle.
Production Solution
Improved material properties of support bracket for hood lock handle.
^ Beginning with VIN : 3C_7E230195
^ Beginning with VIN: 3C_7P15567575
Service
Procedure
^ Raise and support hood.
^ Remove hood lock handle from hood lock, see Repair Manual Group 55 Hood, Lid in ElsaWeb.
^ Separate hood release cable from hood lock, see Repair Manual Group 55 Hood, Lid in ElsaWeb.

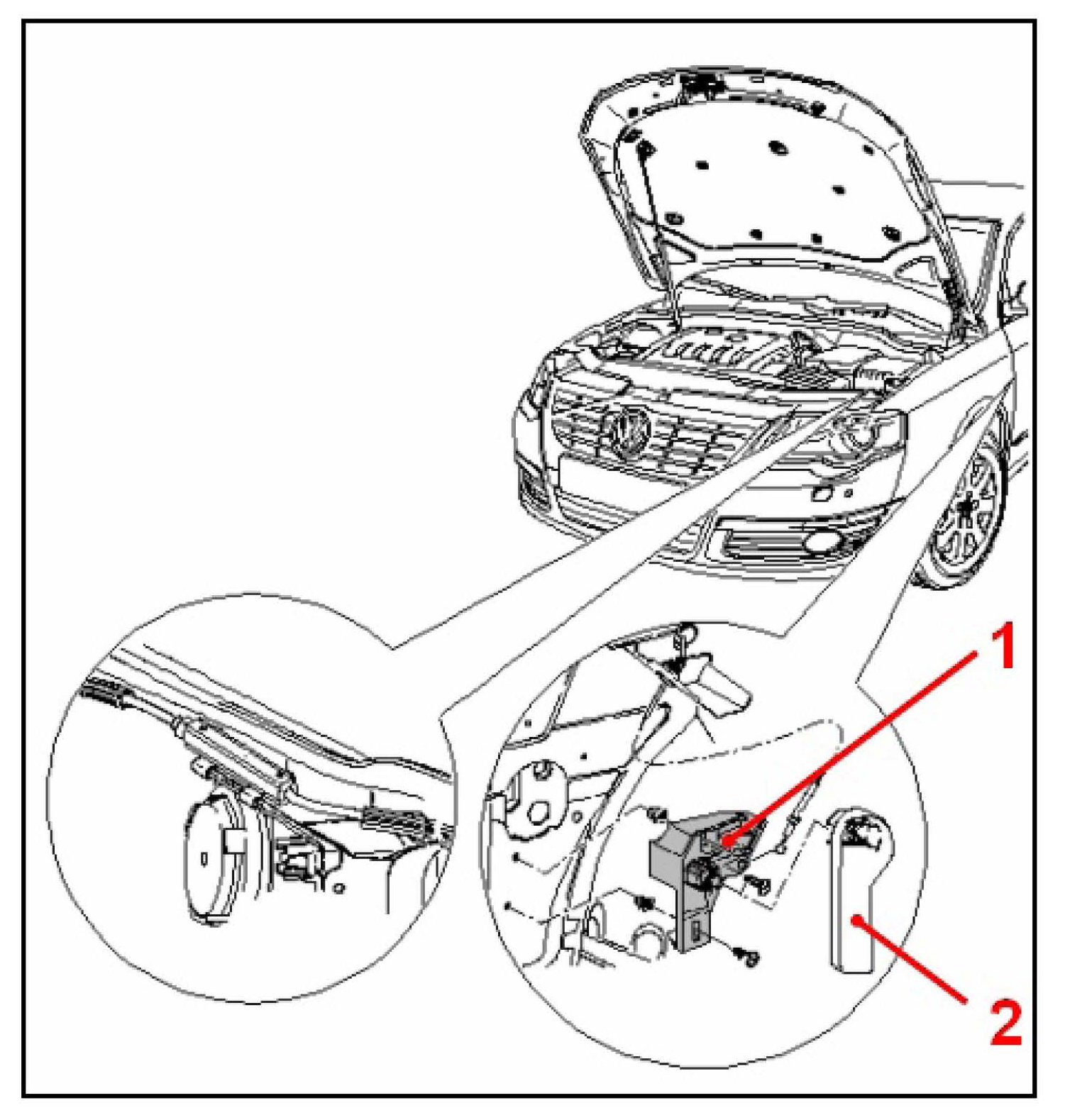

^ Remove hood lock (2), see Repair Manual Group 55 Hood, Lid in ElsaWeb.
^ Install hood lock assembly (2), see Repair Manual Group 55 Hood, Lid in ElsaWeb.
^ Adjust hood lock assembly (2), see Repair Manual Group 55 Hood, Lid in ElsaWeb.

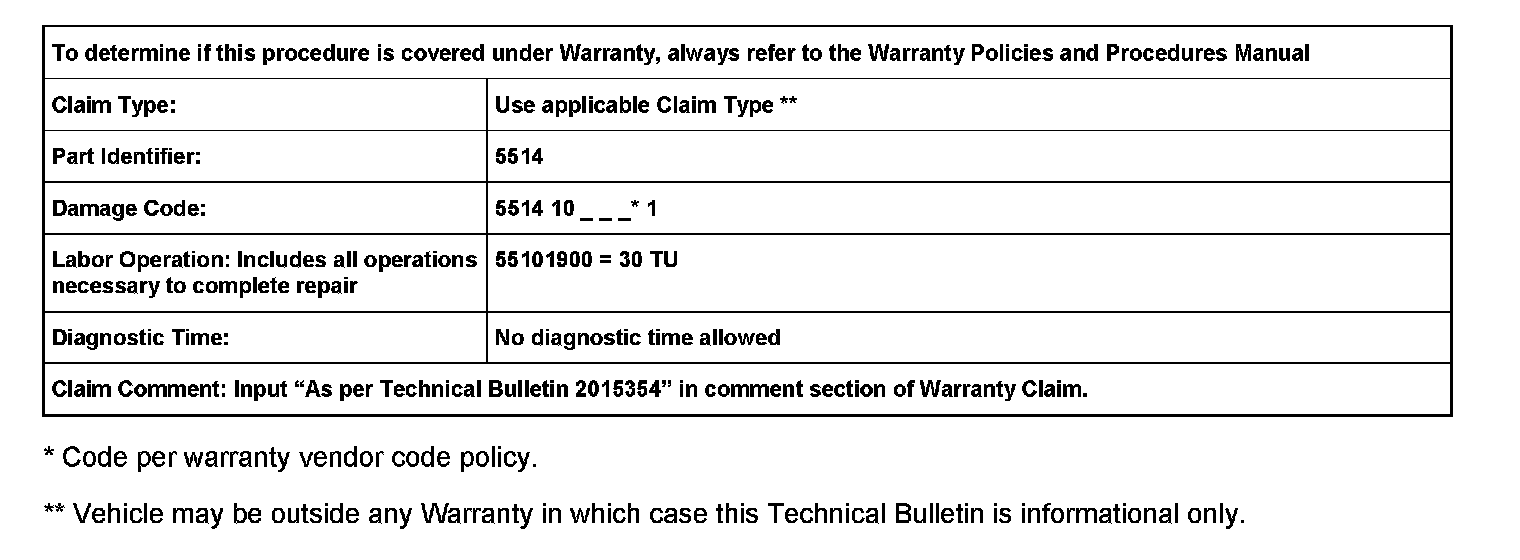

Warranty

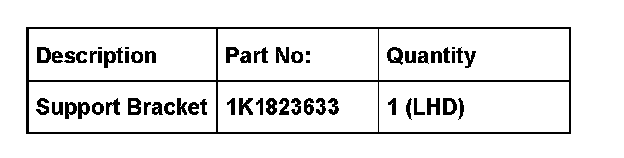

Required Parts and Tools
Additional Information
All part and service references provided in this Technical Bulletin are subject to change and/or removal.
Always check with your Parts Dept. and Repair Manuals for the latest information.
