Rear Vent

Vents and Ducts

Rear Vent

Removing

- Remove the rear trim.

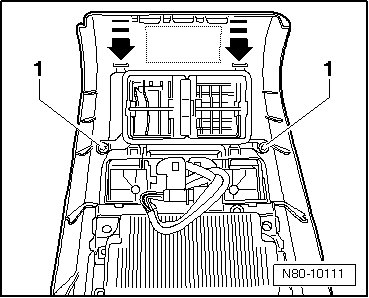

- Remove the screws - 1 - and remove the vent.





Installing

- Insert the vent into the tabs in the trim - arrows -





- Hand tighten the screws - 1 -.

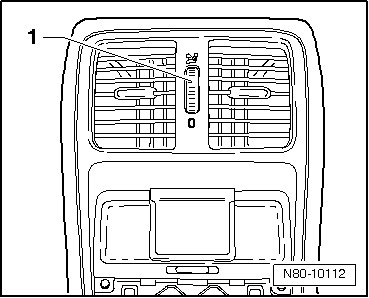

- Check the control function - 1 -.





If the control function works:

- Tighten the screws - 1 - to 1.5 Nm.





If the control function does not work:

- Loosen the screws - 1 - and adjust the vents until the control function works.





- Tighten the screws - 1 - to 1.5 Nm.

- Re-install the rear trim.
