Driver and Passenger Side Vents

Vents and Ducts

Driver and Passenger Side Vents

Special tools, testers and auxiliary items required

• Trim removal wedge (3409)

• Removal of the vents on both sides is identical, but one is a mirror image of the other.

• To prevent damage to instrument panel, use a pad when prying out.

Removing

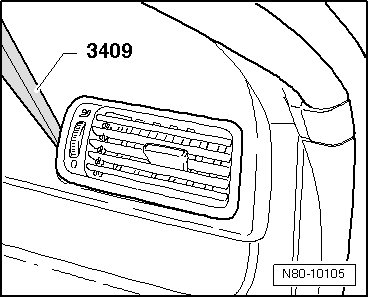

- Pry the vents out of the instrument panel using the trim removal wedge (3409).





Installing

Install in reverse order of removal.
