Center Vent

Vents and Ducts

Center Vent

Special tools, testers and auxiliary items required

• Trim removal wedge (3409)

• Special hook (3370)

Removing

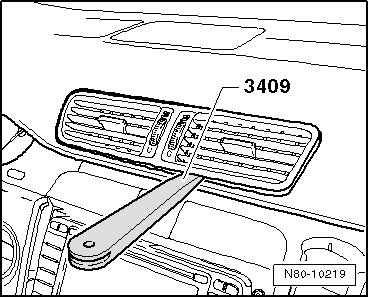

- Insert the trim removal wedge (3409) between the center vent and the instrument panel.





- Insert the special hook (3370) between the center vent and the instrument panel.





- Pull the center vent out of the instrument panel using the special hook (3370).

Center Vent, Disassembling and Assembling. Refer to => [ Center Vents ] Overhaul.

Installing

Installation is carried out in the reverse order, when doing this note the following:

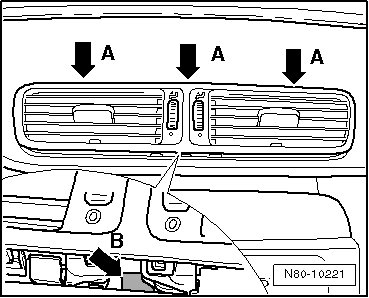

- Install the center vents - arrows A - into the instrument panel.

- When installing the center vents, pay attention to the alignment - arrow B - on the instrument panel.
