After-Run Coolant Pump: Service and Repair

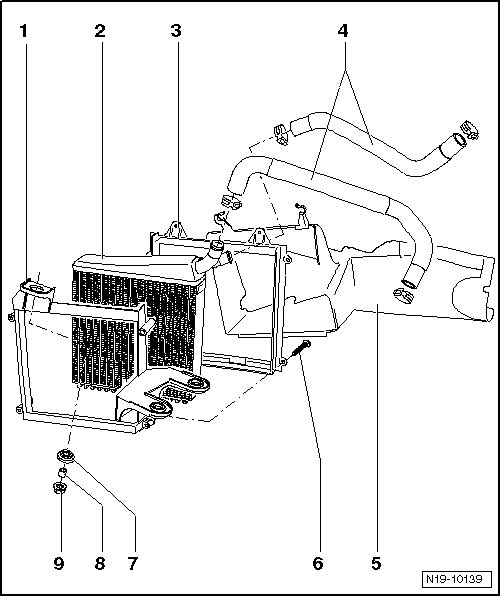

Auxiliary Cooler Overview

• The auxiliary cooler is located behind the left wheel housing liner.

• Coolant hose connection diagram. Refer to => [ Coolant Hose Connection Diagram ] [1][2]Cooling System.





1 Front Mounting Frame

2 Auxiliary Cooler

• For removal, remove the lower left wheel housing liner.

3 Rear Mounting Frame

4 Coolant Hose

• Ensure the hoses are securely seated.

• Coolant hose connection diagram. Refer to => [ Coolant Hose Connection Diagram ] [1][2]Cooling System.

5 Fan Shroud

• Clipped to the rear mounting frame.

6 Bolt

• 5 Nm

7 Rubber Insert

8 Spacer Bushing

9 Nut

• 20 Nm
