Lock Cylinder Housing

Door Components

Lock Cylinder Housing

• Only the driver door still has a lock cylinder.

• Removing and installing is described only for the right lock cylinder housing. Removing and installing the left lock cylinder housing is derived accordingly from this.

Removing

• Cover cap for lock cylinder housing has been removed, refer to => [ Lock Cylinder Housing Cover Cap ] Lock Cylinder Housing Cover Cap

Only for lock cylinder housing with lock cylinder at driver's door

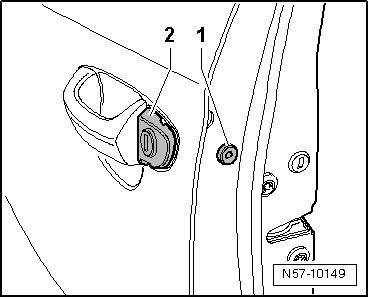

- Pry off cover from securing bolt - 1 -.





- Remove the securing bolt - 1 - for lock cylinder housing with lock cylinder - 2 -.

For all lock cylinder housings

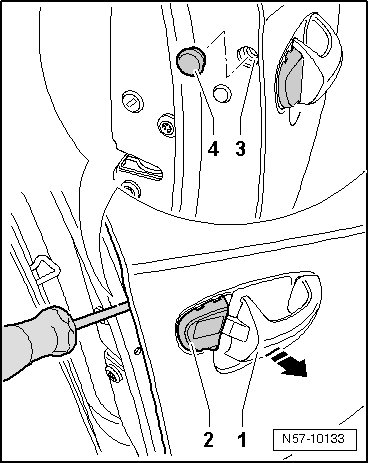

- Pry out cover cap - 4 - in front of bolt - 3 -.





- Pull out door handle - 1 - in - direction of arrow - until it stops and unscrew bolt - 3 - far enough until lock cylinder housing - 2 - can be pulled out.

- Remove lock cylinder housing - 2 - at right angle to door from door handle mounting bracket.

• Door handle remains standing in pulled-out position. Do not attempt to press door handle in, otherwise retaining tab on mounting bracket breaks off and a removed door handle can no longer be installed.

Installation

In pulled-out position - arrow -, door handle must stand off from door.

- Insert lock cylinder housing - 3 - at right angle into mounting bracket.





- Screw bolt - 3 - into mounting bracket.

Door handle - 1 - swings automatically on to door.

• During installation, lock cylinder housing must be pressed onto the outer door panel.

Further installation is in reverse order of removal.

• Then, always perform a function test with door opened.
