Screen Separator Wall, Removing and Installing

Screen Separator Wall, Removing And Installing

Removing
- Fold backrest of rear seat bench forward and open right rear door.

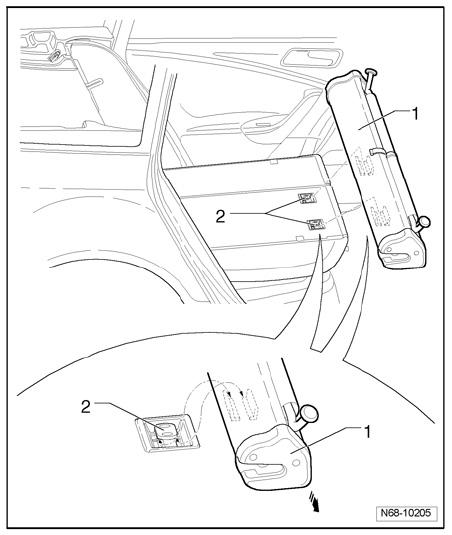

- Pull screen separator wall - 1 - outward - arrow - out of mounts - 2 - in right rear backrest.







Installing
- Installation is performed in the reverse order of removal.
