Mounting Components (Screen Separator Wall), Removing and Installing

Mounting Components (Screen Separator Wall), Removing And Installing

Removing
- Remove screen separator wall.

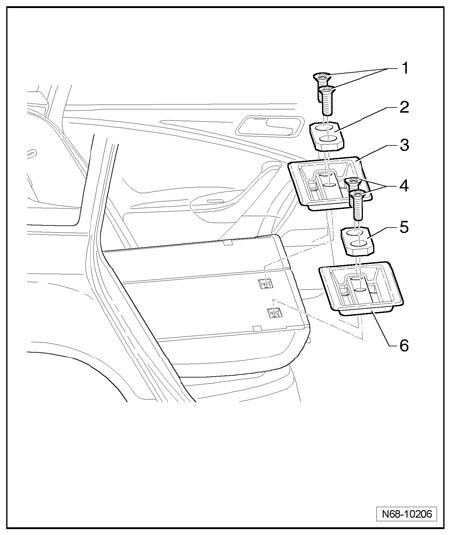

- Remove the two bolts - 1 - (8 Nm).
- Remove insert - 2 - and mounting component - 3 - from right backrest.
- Remove the two bolts - 4 - (8 Nm).







- Remove insert - 5 - and mounting component - 6 - from right backrest.







Installing
- Installation is performed in the reverse order of removal.
