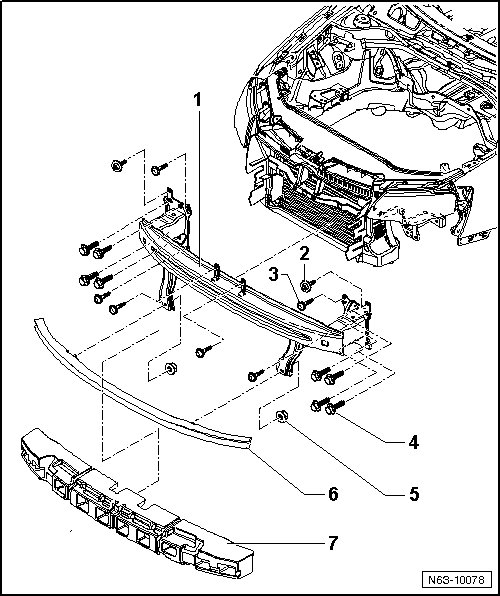

Front Bumper Carrier Assembly Overview





1 Front Bumper Carrier

2 Bolt

• Left and right

• Tightening specification: 3.5 Nm

3 Bolt

• Quantity: 6

• Tightening specification: 8 Nm

4 Bolt

• 4 pieces per side

• Tightening specification: 60 Nm

5 Hex Nut

• Left and right

• Tightening specification: 20 Nm

6 Cross Member

• Pedestrian protection, not applicable in all countries.

• Is screwed to bumper carrier.

7 Foam Piece

• Self-adhesive
