Front Bumper Cover Assembly Overview






Front Bumper Cover

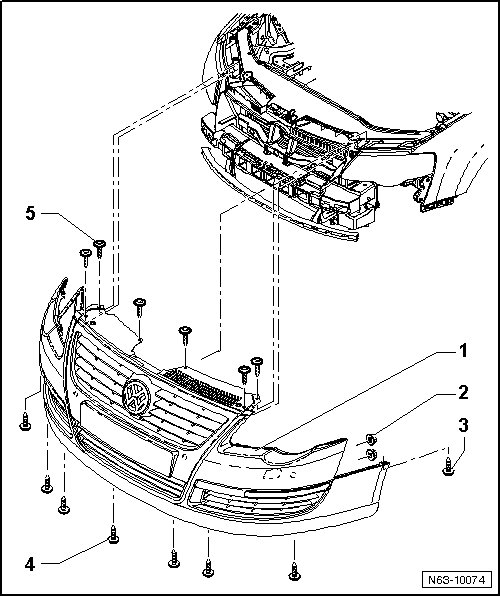

Front Bumper Cover Assembly Overview





1 Front Bumper Cover

• PP/EPDM material

• Removing and Installing, refer to => [ Front Bumper Cover ] Front Bumper Cover

2 Hex Nut

• 2 pieces per side

• Tightening specification: 4 Nm

3 Bolt

• Left and right

• Pointing upward

• Tightening specification: 2 Nm

4 Bolt

• Quantity: 7

• Tightening specification: 2 Nm

5 Bolt

• Quantity: 6

• Tightening specification: 2 Nm
