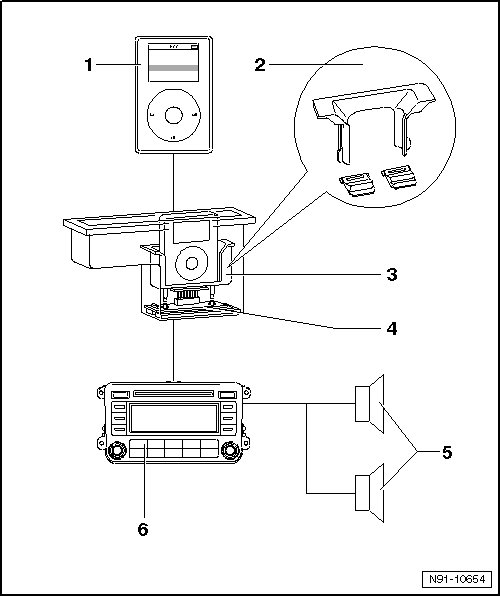

iPod Mount Component Overview

iPod Mount Component Overview





1 "iPod"

• Classic version of "iPod", 3rd and 4th generation

• Mini version of "iPod" or

• Photo version of "iPod"

2 Adapter

• To adapt mount to different "iPod" sizes.

• Mount adapter, removing and installing, => [ iPod Mount Adapter ] iPod Mount Adapter.

3 "iPod" mount

• Mount is integrated in storage compartment under center armrest

• "iPod" mount, removing and installing, => [ iPod Mount ] iPod Mount.

4 "iPod" mount system electronics

• Electronics are not accessible, can only be replaced with entire mount

• Connector overview => [ iPod Mount, Multi-Pin Connector Assignments ] Ipod Mount, Multi-Pin Connector Assignments.

5 Left and right vehicle speakers

• Depending on radio version

6 Radio (R) or Radio/Navigation Display Control Module (J503)
