Aux-In Socket

Aux-In Socket, From 06/2006

NOTE:
- For additional information, Operators Manual.
- When the battery is reconnected, remember to check the vehicle accessories (radio, clock, electronic conveniences, etc.) according to the repair information and/or the operators manual.

The Aux-In socket is installed in the glove compartment in place of the glove compartment light.







Aux-In socket, location

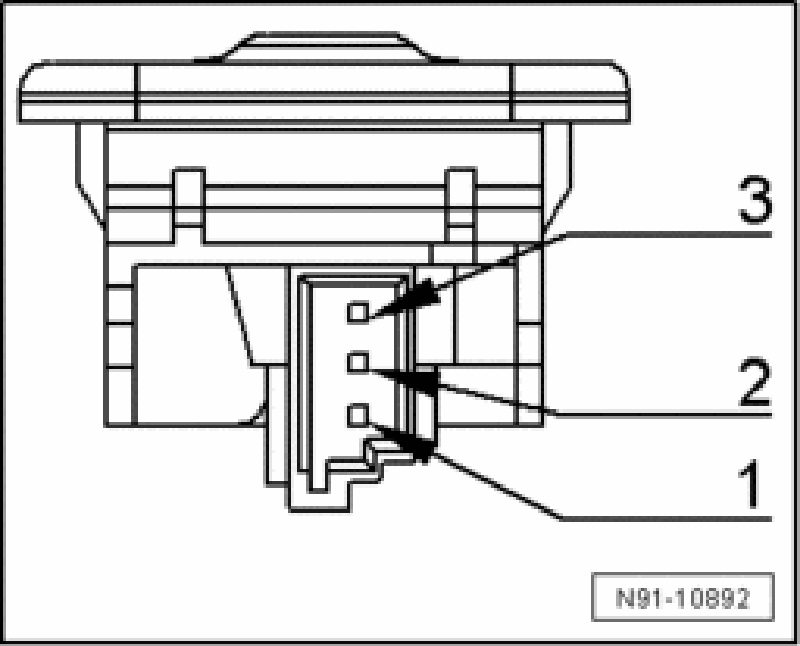

Aux-In socket, pin assignment







1. Left audio signal
2. Voltage supply, terminal 31, negative
3. Right audio signal

Aux-In socket, removing and installing

Special tools, testers and auxiliary items required







- Locking Pin T40011

- Open glove compartment lid.

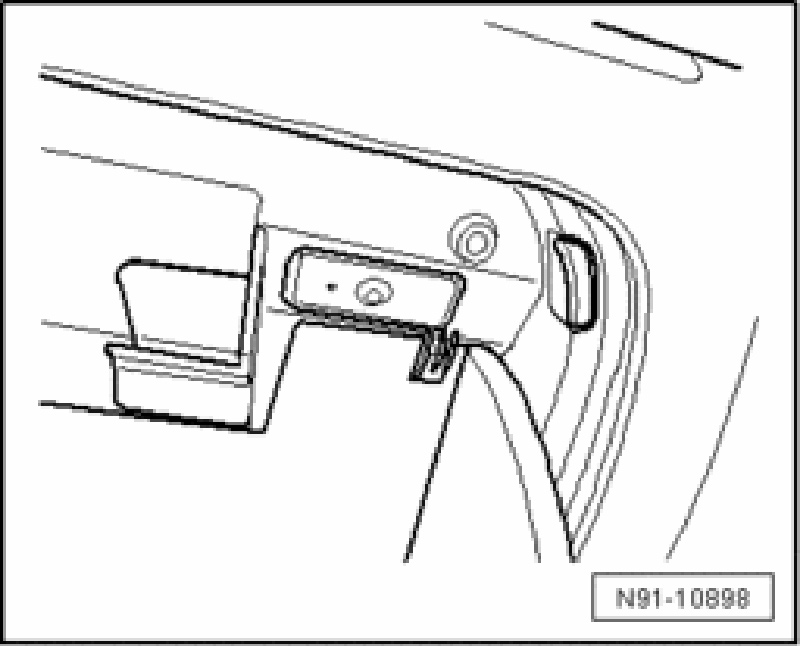

- Insert release tool in opening provided -arrow-.
- Unclip Aux-In socket from retainer.
- Disconnect electrical connector.
Install in reverse order of removal.
