"iPOD" Cradle, Overview

"iPOD" Cradle, Overview

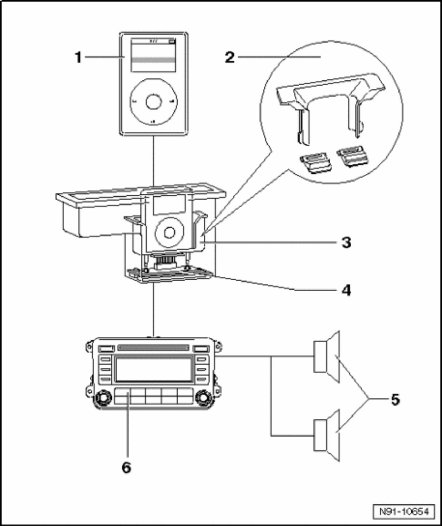

1 - "iPOD"
- classic version of "iPOD", 3rd and 4th generation
- mini version of "iPOD" or
- "Photo" version of "iPOD"
2 - Adapter
- to adapt cradle to different "iPOD" sizes.
- Cradle adapter, removing and installing,
3 - "iPOD" cradle
- Cradle is integrated in storage compartment under center armrest
- "iPOD" cradle, removing and installing,
4 - "iPOD" cradle system electronics
- Electronics are not accessible, can only be replaced with entire cradle
- Multi-pin connector assignments
5 - Left and right vehicle speakers
- Dependent on radio version
6 - Radio R or Radio/Navigation Display Unit Control Module J503
